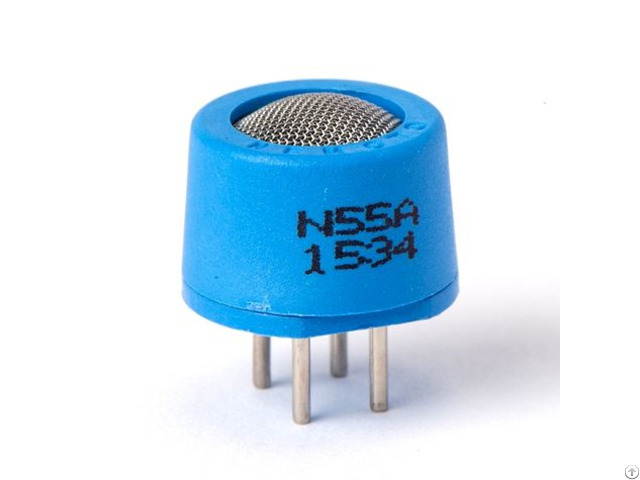

Nap 55a Miniature And Low Power Consumption Type Flammable Gas Sensor - China
price: check with company for price
NAP-55A is a miniature & low power consumption type sensor.
NAP-55A is mainly used for gas detectors and leak testers.
NAP-55A is a half in height and needs a half in power consumption compared to existing sensor so that thinner and lighter-weight detectors can be produced.
The following are the basic characteristics but it is recommended to refer to the individual user’s manual for further information.
A measuring circuit for sensor evaluation is the same as NAP-66A.
/
* Target gases and concentration
Methane(CH4): 0.05 ~ 5% (0.05 ~ 2%)
Propane(C3H8): 0.03 ~ 2.2% (0.03 ~ 1%)
Iso-butane(Iso-C4H10): 0.03 ~ 1.8% (0.03 ~ 0.8%)
Hydrogen(H2): 0.05 ~ 4% (0.05 ~ 1.5%)
Ethanol(C2H5OH): 0.05 ~ 3.2% (0.05 ~ 1.5%) Hydrocarbons(CnH2n+2): 1~100%LEL (1~50%LEL)
/
Ratings * Supply Voltage: DC 2.5 ± 0.25V AC 2.5 ± 0.25V (r.m.s.
50~60Hz)
* Current (When 2.0V is applied): DC 150 ~ 170mA AC 150 ~ 170mA (r.m.s.
50~60Hz)
* Ambient Temperature In operation -10 ~ +50℃ In storage -10 ~ +50℃
* Ambient humidity In operation 95%RH or less In storage 99%RH or less (No dew condensation)
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: April 22, 2019
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
