Multilayer HDI PCB Manufacturer

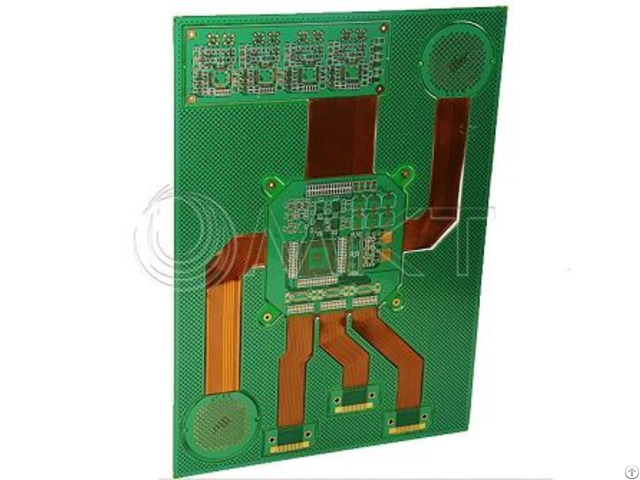

Flexible-Rigid PCB

Layer Count/Technology 4-20 layers 4-20layers

PCB Thickness Range 0.5-2.4MM 0.4-2.4MM

Build Up Technology 1-N-1 / 2-N-2 / 3-N-3 / 4-N-4 1-N-1 / 2-N-2 / 3-N-3 / 4-N-4 / 5-N-5 / 6-N-6 / 7-N-7

Min.

Laser Drill Diameter 110μm 75μm

Laser Techlology CO2 Direct Drilling(UV/CO2) CO2 Direct Drilling(UV/CO2)

Materials FR4/FR4 Halogen Reduced FR4 / Taconic / Rogers / Others on request

Class Transition Temperature 140℃ / 150℃ / 170℃ 140℃ / 150℃ / 170℃ / 200℃

Standard Glass Cloth 1027/106 / 1080/2116 / 1501/7628 1037/106 / 1080/2116 / 1501/7628 / 1027/

Copper Thickness 12μm/18μm/35μm/70μm 9μm/12μm/18μm/35μm/70 μm/105μm

Copper Plating Holes 20μm(25μm) 13μm / 20μm / 25μm

Min.

Line/ Spacing 60μm / 60μm 40μm / 40μm

Soldermask Registration 70μm 60μm

Min.

Soldermask Dam +/-38μmPhoto-imageable) +/- 25μm(Photo-imageable)


Soldermask Color Green / White / Black / Red / Blue Green /White / Black / Red / Blue

Max.

PCB Size 575mm × 500mm 575mm × 500mm

Production Panel 609.6mm × 530mm 609.6mm × 530mm

Min.

Annular Ring 125μm 100μm

Smallest Drill 0.28mm 0.15mm

Smallest Routing Bit 0.8mm 0.8mm

Surfaces OSP/Immersion Tin OSP/Immersion Tin

Immersion NI/AU Immersion NI/AU Plated Ni/AU Plated Ni/AU immersion AG immersion AG Scoring Yes Yes

ID Print White White

We have over 15 years experience in produce PCB services and have reliable of raw material suppliers.

We can find out the best source to consistently reduce your cost.
