Mf5000 Series Gas Mass Flow Meters - China

price: check with company for price

Mf5000 Series Gas Mass Flow Meters

Products Photos Catalog Mf5000 Gas Mass Flow Photos Catalog

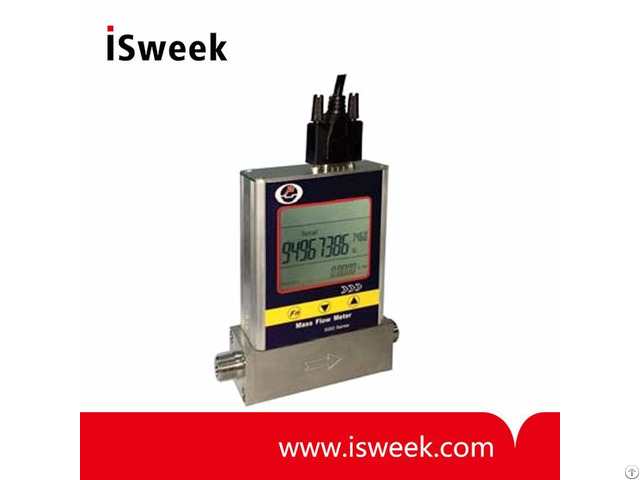

MF5000 series Gas Mass Flow Meters General description

MF5000 series mass flow meters are specially designed for small pipe flow monitoring and feature an extremely low pressure loss compared to the traditional by-pass thermal mass flow meters in this application scope.

The accuracy of the meters are generally ±(1.5+0.5FS)% or better depending on the requests.

The meters can work at an environment of -20 to 60°C and pressure up to 1.5 MPa.

Applications include semiconductor gas process monitoring and control, hospital oxygen gas monitoring, etc.

MF5000 Series have 5 designs, with model number: MF5003/MF5006/MF50 08/MF5012/MF5019.

/

MF5000 series Gas Mass Flow Meters Features and Applications

- Highly sensitive, measuring as low as 8 mm/sec, and as high as 65 m/sec with a single assembly

- Directly sense mass flow using thermal mass flow principle

- Proprietary MEMS sensor package design for better reliability

- Standard 12 ~ 24 Vdc power supply

- Low pressure loss forreducing energy cost

- Industrial standard Modbus protocol for easy networking and remote control

/

MF5000 series Gas Mass Flow Meters Specifications

• ​Accuracy: ±(1.5+0.5 FS)%

• Environment:

- Temperature: -20 ~ +60℃;

- Humidity: < 95%RH (No icing or condensation )

• Flow channel: 3 ~ 19 mm

• Display: Flow rate and accumulated flow

• Interface: 4 ~ 20 mA; RS485; Pulse

• Calibration: Air @ 20℃; 101.325 kPa
