Instrument Tracking Management Rfid Uhf Gen2 Heatproof Oem Tag - China
price: 0.60 Dollar US$

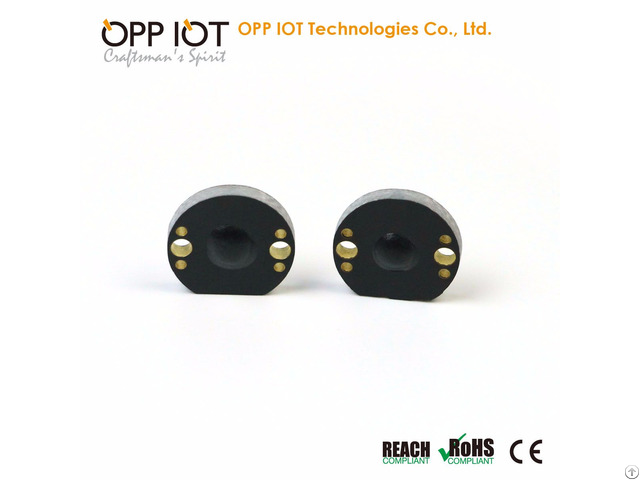

UHF Metal Tag Dolphin series: OPPD20
Functional Specifications: RFID Protocol: EPC Class1 Gen2, ISO18000-6C
Frequency: (US) 902-928MHz, (EU) 865-868MHz
IC Type: Alien Higgs-3
Memory EPC 96bits (Up to 480bits), USER 512bits, TID64bits
Write Cycles: 100, 000times
Functionality: Read/write
Data Retantion: Up to 50 Years
Applicable Surface: Metal Surfaces
Read Range :
(Fix Reader: ThingMagic FU-M6-E) 320cm - (US) 902-928MHz, on metal
280cm - (EU) 865-868MHz, on metal
Read Range :
(Handheld Reader: OP9908, R2000) 240cm - (US) 902-928MHz, on metal
230cm - (EU) 865-868MHz, on metal
Warranty: 1 Year Physical Specification: Size: Diameter 20mm, (Hole: D2mm*2)
Thickness: 2.0mm without IC bump, 2.8mm with IC bump
Material: FR4 (PCB)
Colour: Black
Mounting Methods Adhesive, Screw
Weight: 1.0g Environmenal Specification: IP Rating: IP68
Storage Temperature: -40°С to +150°С
Operation Temperature: -40°С to +100°С
Cerifications: Reach Approved, RoHS Approved, CE Approved
Company Contact:
- Posted By: OPPIOT Technologies Co., Ltd.
- Phone: 18750070819
- Address: 2104 Room SANDI International Finance Centre, 249# MingXin Street LongQiao, ChengXiang Putian City F, Putian , Fujian , China
- Email:
- Website: http://www.oppiot.com
Published date: February 5, 2018
- Business Description: We provide different sizes of RFID UHF on-metal tags for different application.
Great performance, even size 6x6mm, read distance reach to 110cm.
