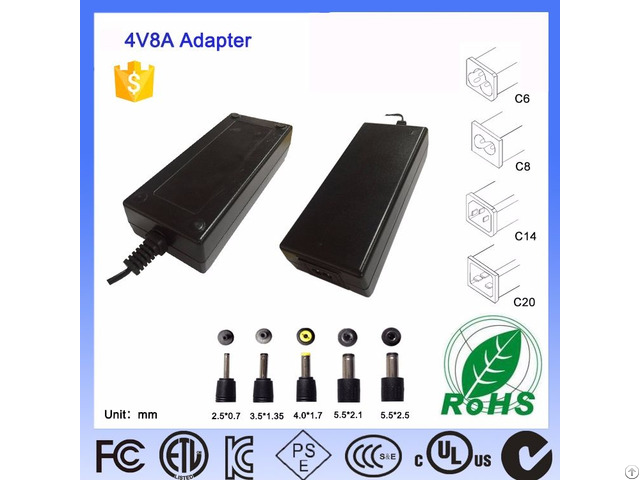

Input 100 240v 50 60hz And Output 5 57v 65w Laptop Ac Switching Power Adapter Level Vi Pse Certified - China

Input Voltage: 100~240V AC 50~60Hz

Input current: 1.0A Max.

Output Voltage: 5-57V(+-5% tolerance)

Output current: 0.5A - 9.0A Ripple: 1% peak to peak maximum

Over voltage protection & Over current protection & Over Temperature protection & Short circuit protection.

Temperature coefficient: All out+-0.04%℃ maximum

Transient response: Maximum excursion of 4% or better on all models.

Recovering to 1% of final value within 500uS after a 25% step load change.

Operating temperature: 0℃~+40℃.

Storage temperature: -40℃~+85℃ ;.

Relative humidity: 5% to 95% non-condensing.

Setup up / Hold up / Rise time: Typical: 3000mS / 16mS / 50mS at full load.

Line regulation: +-1% maximum for any input voltage change between input voltage range

Load regulation: +-5%variations from minimum to maximum output current.

Insulation resistance: 50Mohm minimum from output to ground.

Withstand voltage: 4300VDC from input to output

Mean time between failure: 100, 000 hours minimum at full load 25℃ ambient

Energy Saving (Level VI / Level 6)

EMC requirements: FCC CLASS B, EN55022 CLASS B.

EN 55024: 1998+A1: 2001+A2: 2003; Part 15 Subpart B, IC ICES-003

Safety requirements: UL 60950-1: 2007, EN 55022: 55024/EN 60950-1/EN 61558-1/EN 61558-2-16, EN 60950-1/EN 61558-1/EN 61558-2-16/AfPS GS 214, AS/NZS 60950-1: 2011& AS/NZS 3112: 2011.

Warranty: 3- Years.

Merry King professional manufacturer of Switching Power Adapter, Linear Power Adapter, Charger, Power Transformer, Audio Transformer, High-frequency transformer, inductance.

The MERRY KING ENTERPRISES CO., LTD. Headquarters founded in PingDung Hsien, TAIWAN in 1990 - In 1995, ShenZhen factory was built in XiaJing Town.

With the quantity of business' increasing, The factory moved to SongGang Town Shen Zhen City.

factory building area of 18000 square feet, the staff 800 people, in December 1999 the ISO9001: 2000 new certification, certification number: FM53782, the following year began to supply power to the world's top brand series of products.

Company Contact:

• Posted By: Merry King Enterprises CO.,LTD.

• Phone: 86-0755-27089988

• Address: Floor 2, Building 1 Sanwei Industrial, Xi Xiang Street, Bao An,ShenZhen City,Guang Dong,China., Shenzhen , Guangdoing , China

• Email:

• Website: http://www.merryking.net

• Business Description: Merry King Enterprises CO., LTD.

  PANFORE LIMITED.

  Contact person: Angie Wong

  Phone: +86-0755-27089 988

  Email: angie@merryking tech.

  com

  Skype: angiehhe27 417289

  Website: www.

  merryk ing.

  net

  Company Description:

  Merry King professional manufacturer of Switching Power Adapter, Linear Power Adapter, Charger, Power Transformer, Audio Transformer, High-frequency transformer, inductance.

  The MERRY KING ENTERPRISES CO., LTD. Headquarters founded in PingDung Hsien, TAIWAN in 1990 - In 1995, ShenZhen factory was built in XiaJing Town.

  With the quantity of business' increasing, The factory moved to SongGang Town Shen Zhen City.

  factory building area of 18000 square feet, the staff 800 people, in December 1999 the ISO9001: 2000 new certification, certification number: FM53782, the following year began to supply power to the world's top brand series of products.

  Adapting to Global Economic Development in 2011 for Industrial Adjustment, factory overall moved to Xixiang hangcheng sanwei industrial zone.

  In 2018, Merry King shares in DongGuan Guangshu Electric Technology Co., LTD and set up a factory in Dalingshan Town, Dongguan City.

  Professional research and development and production of switching power supply, LED drive power supply.

  Shenzhen factory only produces low-frequency power adapters, low-frequency transformers and high-frequency transformers, magnetic ring inductors and other traditional products.

  Along the way, rely on the accumulated years of experience and research and development strength, convinced that can provide customers with high quality products and comprehensive services.

  All products comply with European Union ROHS standards and through the PSE, UL, CUL, GS, FCC, CEC, CCC, TUV, CE, CB, PSC SAA and MEPS, C - TICK and other safety certification.

  We always adhere to the "good faith cooperation, win-win" concept, in line with the "trust stems from quality, respect based on professional" principle, to provide customers with first-class products and services.
