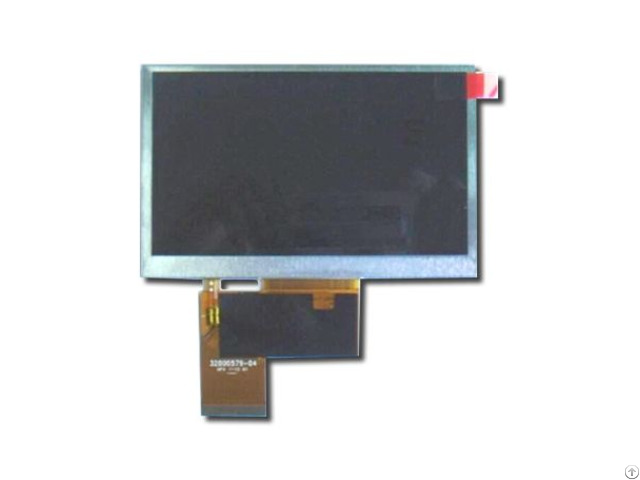

Innolux 4 3 Inch Tft Lcd At043tn25 V 2 - China

Productor INNOLUX

MODEL AT043TN25-V.

2

Size 4.3"

Resolution 480*272

Resolution Name WQVGA

Display scale 16: 9

Pixel Arrangement RGB

Pixel Pitch 0.066*0.198 mm

Panel Composition LCD

Technology a-Si TFT-LCD

Panel Features Write LED, Display mode TN, NW, Luminance 500 nits

Contrast Ratio 500: 1

Color 16.7M

Color Saturation 50%NTSC(CIE1931)

Response 10/15 (Tr/Td) ms

Viewing Angle 50/70/70/70

The Best View 6 o'clock

White Field Chroma X: 0.310; Y: 0.330

White Field Dynamic 1.33 (9 points)

Scanning Frequency 60Hz

Reverse Scan No

The kind of Singnal Parallel

Interface Parallel

Singnal Interface Definition DRGB-40P1C8B-085A

Drive-screen voltage 3.3V

Input Current) 17mA

Brand of Singnal Interface FPC

Pitch of Singnal Interface 0.5 mm

Quantity of Singnal Interface 1 pcs

Pin of Singnal Interface 40 pins

Operation Temperature -20 °C ~ 70 °C

Storage Temperature -30°C ~ 80°C

Active Area 95.04*53.856 mm

Display Area 98.7*57.5

Outline 105.50* 67.20*2.90 mm
