Ingke Ykjd 8099nl Cross 13f 64gydp2nl 10 100 Base T Rj45 Modular Jack Connectors - China

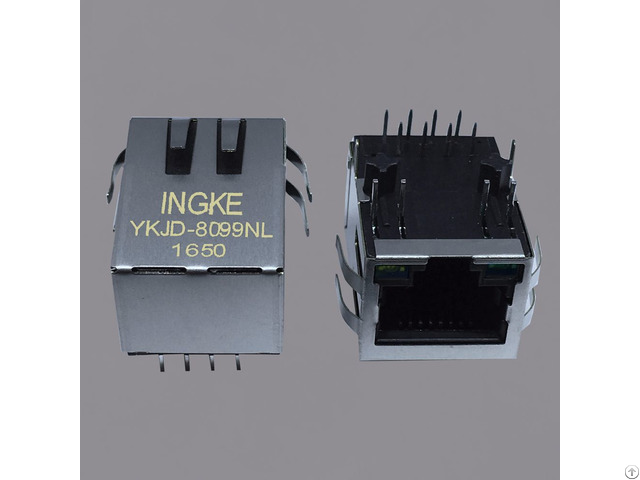

Ingke YKJD-8099NL cross 13F-64GYDP2NL 10/100 Base-T RJ45 Modular Jack Connectors Part Number : 13F-64GYDP2NL Made in China: YKJD-8099NL Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Packaging : Tray Connector Type: RJ45 Number of Ports : 1 Number of Rows : 1 Applications : 10/100 Base-T, AutoMDIX Mounting Type : Through Hole Orientation: 90° Angle (Right) Termination : Solder LED Color: Green - Yellow Number of Cores per Jack : 4 Shielding : Shielded, EMI Finger Features: Board Lock Tab Direction : Down Contact Material : Phosphor Bronze Contact Finish : Gold Operating Temperature : -40℃~85℃ Contact Finish Thickness : 30µin (0.76µm) Shield Material : Copper Alloy Housing Material : Thermoplastic Ingke Technology Mass production of the following models; 13F-64ND2NL 13F-64NW2NL 13F-64GGD2NL 13F-64AND2NL 13F-64AGGD2NL 13F-64GYD2NL 13F-64GYDNW2NL 13F-69ND2NL 13F-61ND2NL 13F-60END2NL 13F-60CND2NL 13F-62ANW2NL 13F-62ADGD2NL 13F-62AND2NL 13F-61FND2NL 13F-66YGDNW2NL 13F-62AGGD2NL 13F-62CGYD2NL 13F-60VGYD2NL 13F-67BYGDD2NL 13F-69GYDNW2NL 13F-69GYD2NL 13F-62AGYD2NL 13F-67CGYDS2NL

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
