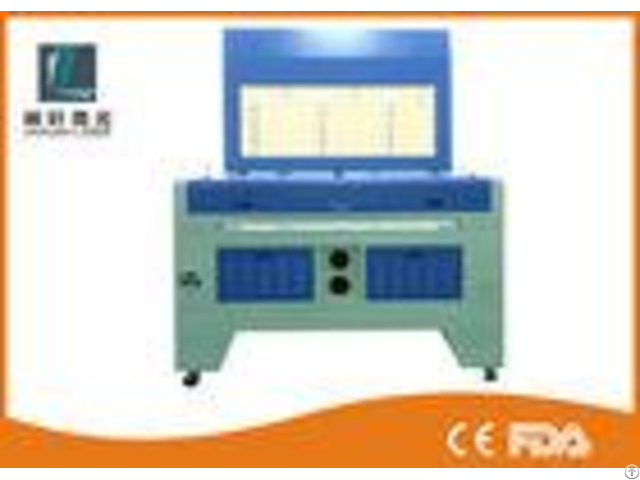

High Precision 80w 1060 Industrial Laser Cutting Machine For Plastic Pvc Board - China
price: check with company for price
Acrylic Cloth Acrylic 80W 1060 CO2 Laser Cutting Machine For Acrylic, Plastic, PVC board
Features 1 - The professional manufacturers adopts square tube framework in China, with more than 40% higher fuselage strength than iron sheet structure.
This design prevents the machine fromquivering resonance and distortion during long term work.
3 - New-style high-efficiency laser tube is adopted.
Laser beam is more stable than the traditional type.
Usage age is more than 10000 hours.
4 - Latest software compatible with AutoCAD, CoreDRAW and other kinds of graphics processing software
5 - Low cost: Save energy and protect environment.
Photoelectric conversion rate is up to 25-30%.
Application Applicable Industries: Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.
Applicable Materials: Acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline, marble, leather, cloth, double-color board, etc.
nonmetal materials .
.
Machine specification - - - -
Model | LX-1060 | LX-6040 | LX-1390 | LX-1610/1612/1325 | Laser | CO2 glass sealed laser tube or metallic sealed laser tube | Laser power | 40W/60W/80W | 60W/80W/100W/120W/150W | Work platform size | 1000x600mm |600400mm | 1300900mm | 1600x1000mm/1200mm | 1300x2500mm | Engraving speed | 1000mm/s | Cutting speed | 500mm/s | Worktable | honey-comb or aluminum knife optional | Precision of positioning | 0.025mm | Working temperature | 5-30 C degree | Control System | RDCAM DSP Control system | SoftWare | Laser Cut software
PLT, BMP, DXF, DST, TIF format supported
CorelDraw, AutoCAD Software Compatible | Transmission | Belt transmission (Standard)
Or ball screw transmission optional for extra cost | Linear Rail | Taiwan HIWIN linear rail | Motor type: | Japan Stepper motor | DPI | 2500 | Recommended spare parts | Laser tube, Focal lens, Reflection Mirror | Power supply | 220V/50hz/1kva 220V/60HZ/1PH 110V/60HZ/1ph optional | Machine dimension (mm) | 1600*1100*1300 | 1600*800*1050 | 1950*1470*1300 | 2280*1730*1180 | G.
W | 230KG | 260KG | 470KG | 550KGS | - - - - Sample show Packaging & Delivery 1 - Wood case or as per required.
2 - The delivery lead time would be 7-15 days against down payment.
3 - As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.
Competitive Advantages
1 - We offer high quality products at competitive price in quick delivery.
2 - 100% custom pass guaranteed.
3 - Good after-sale service.
4 - Flexible and Untraceable payment terms.
Company Contact:
- Posted By: Wuhan Linxuan Laser Co., Ltd
- Phone: 86-27-87436808
- Address: ROOM 601,NO. 20 BUILDI NG,GUANGGU NEW POWER I NDUSTRIAL PARK,GUANGGU SECOND ROAD NO.219,JIAN GXIA DISTR, WUHAN , hubei , China
- Email:
Published date: May 3, 2018
- Business Description: Wuhan Linxuan Laser Co., Ltd is a high-tech enterprise in Wuhan East Lake Development Zone , we are specializing in producing, developing and selling laser marking machine, laser welding machine, laser cutting machine, etc.
It is Chinese industrial laser processing equipment pioneer.
