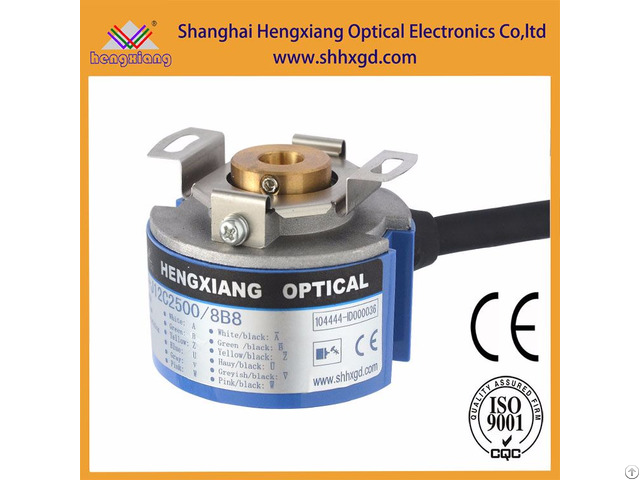

Hengxiang Servo Motor Encoder 12 Phase 2500ppr 8 Poles Diameter 48mm - China
price: 40.00 Dollar US$
1) Advantages 1, Certification: CE& ISO9001 & SGS.
2, Feature: microminiature, logical compact configuration and easy to install.
3, Application: subminiature motor, small instrument, etc., for automation control K48- Series Encoder Specification Brand: HENGXIANG
External Dimensions: External diameter: 48mm
Thickness: 34mm
Shaft diameter: 6mm/8mm/10mm/12m m
Resolution: 22;50;60;10 0;200;250;256;300;360;500 ;512;600;720;1000;1024;12 00;2048;2500;3600;4096;50 00
1000/16; 2000/6; 2000/8; 2000/12; 2048/6; 2048/8; 2500/4; 2500/6; 2500/8; 2500/16;4096/8
Output Phase : Phase A, B, Z, A-, B-, Z-, U, V, W, U-, V-, W-
Supply voltage: DC5V & DC8-30V
Outlet type: Cable out from side
Output Mode: Collector open circuit output(NPN &PNP);Voltage output ;Push-pull output ;Line Driver (26LS31);Line Driver Compatible RS422;Line Driver(RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing) Protection grade: IP50
Cable length: 500mm (cable length could be added ) Shell: Aluminium
Package: Carton box
Net weight: About 140g (with package)
Certification: CE
Company Contact:
- Phone: 15956966023
- Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang, shanghai , China
- Email:
- Website: http://www.shhxgd.com/en
Published date: May 18, 2017
- Business Description: We are specializing in the production of encoders, with more than 16 years of experience, we could provife you solid shaft encoder/ hollow shaft encoder/ absolute encoder and so on.
