H2s B1 Hydrogen Sulfide Sensor - China

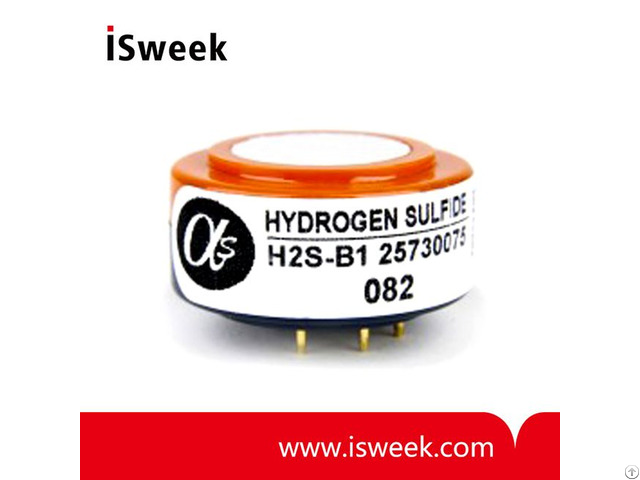

H2S-B1 Hydrogen Sulfide Sensor (H2S Sensor) Description

Alphasense Hydrogen Sulfide gas sensors operate using well-known fuel cell technology.

/

H2S-B1 Hydrogen Sulfide Sensor sizes:

32mm diameter package, the best choice for fixed site applications

/

With very high sensitivity and low zero, accurate and stable readings are possible when measuring current concentration ranges from ppb to 1% H2S.

/

H2S-B1 Hydrogen Sulfide Sensor (H2S Sensor) Specifications:

• Range: 200ppm H2S limit of performance warranty

• Sensitivity: 300 to 450 nA/ppm in 20ppm H2S

• Response time t90: < 55 (s) from zero to 20ppm H2S

• Resolution: < 0.05 RMS noise (ppm equivalent)

• Temperature range : -30 to 50 ℃

• Pressure range: 80 to 12 kPa

• Humidity range: 15 to 90 % rh

• Weight: < 13g

/

Matched Transmitter board for H2S-B1 H2S Sensor

4-20mA Analogue Transmitter Board • Factory calibration, custom-set for immediate use • Wide operating voltage range • Low RFI susceptibility

Alphasense 4-20 mA analogue transmitter boards provide a cost effective way for Original Equipment Manufacturers to engineer transmitter heads for fixed installation systems.

/

4-20 mA Digital Transmitter Board • Factory calibration, custom-set for immediate use • Digital zero, sensitivity and temperature compensation • Digital and 4-20mA output • Biased or unbiased operation • Calibration and range change
