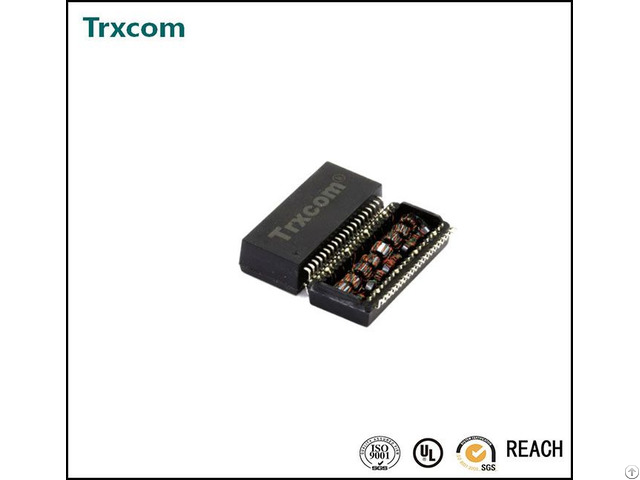

Gst5009 Lf 1000m Smd Lan Transformer - China
price: 0.45 Dollar US$
1000Base-T Magnetic Single Port 24Pins Free sample available Isolation Voltage: 1500Vrms Temperature: 0 TO 70 UL, RoHs, Reach, ISO9001: 2008 TRC82440NL=GST5009 LF=TS21C 1000Base-T Magnetic Modules TRC82440NL 1 - Designed to support application, such as SOHO (ADSL modems), Lan-on-Motherboard(LOM), hub and switches.
2 - Meets IEEE 802.3 specification.
3 - Maximum reflow temperature is 260℃, 5 Sec.
4 - UL certification: File Number E321120 ELECTRICAL APECIFICATIONS @25℃ 1 - Turn Ratio(TX/RX) Pri: Sec=1CT: 1CT ±5% 2 - Inductance OCL: 350uH MIN, 100KHz/ 0.1V 8mA DC Bias 3 - Insertion Loss: 1-100MHz: -1.0dB Max 4 - Return Loss: 1-30MHz: -18dB Min 40MHz: -14.4dB Min 50MHz: -13.1dB Min 60-80MHz: -12dB Min 5 - Cross talk: 30MHz: -45dB Min 60MHz: -40dB Min 100MHz: -30dB Min 6 - Differential to common Mode Rejection(dB TYP): 30MHz: -40dB Min 60MHz: -35dB Min 100MHz: -30dB Min 7 - Hipot Test: 1500Vrms 8 - Operation Temperature Range: 0 ℃ TO 70℃
Company Contact:
- Posted By: Shenzhen Trxcom Electronics Co.,Ltd
- Phone: 8613554918626
- Address: Minzhi Town, Longhua District, shenzhen , Guangdong , China
- Email:
Published date: June 24, 2019
- Business Description: The products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
1) 10/100/1000M LAN pulse transformer and filter
2) RJ45 connector with 10/100/1000M magnetic
3) T1/E1, T3/DS3/E3 - STS-1 interface line transformer
4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
