Germany P F Diffuse Mode Sensor Glv18 8 200 115 120 - Germany

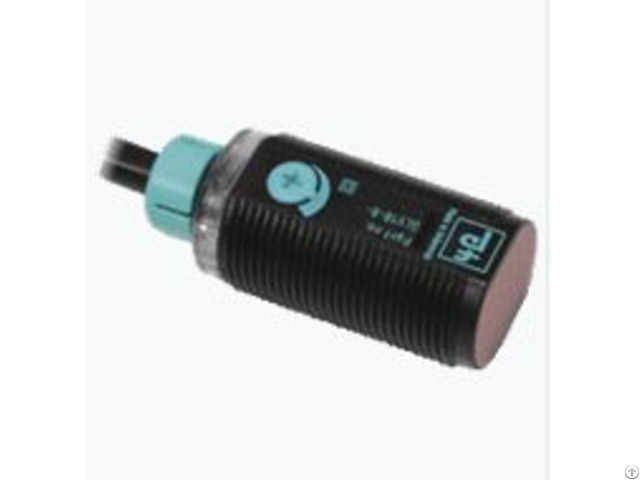

Diffuse mode sensor GLV18-8-200/115/120

Efficient Line in a short M18 plastic housing for standard applications

4 LEDs indicator for 360° visibility

Optimized potentiometer design for a clear control button layout in the application

Version with front optical face

DC voltage version

Product Description

Diffuse mode sensor, M18 threaded housing design, plastic housing, front optical face, 200 mm detection range, red light, light/dark on, DC version, 2 PNP outputs, fixed cable

General specifications

Detection range 50 .

200 mm adjustable

Light source LED

Light type modulated visible red light, 640 nm

Diameter of the light spot approx.

15 mm at 200 mm

Angle of divergence approx.

4 °

Functional safety related parameters

MTTFd 920 a

Mission Time (TM) 20 a

Diagnostic Coverage (DC) 0 %

Indicators/operating means

Function indicator LED yellow: lights when object is detected ; flashes when falling short of the stability control

Control elements sensitivity adjustment

Electrical specifications

Operating voltage 10 .

30 V DC

Output

Switching type light/dark on

Signal output 2 PNP, complementary, short-circuit protected, open collectors

Compliance with standards and directives

Standard conformity

Product standard EN 60947-5-2: 2007

IEC 60947-5-2: 2007

Mechanical specifications

Degree of protection IP67

Connection 2 m fixed cable

Material

Housing PC

Optical face PMMA

Cable PVC
