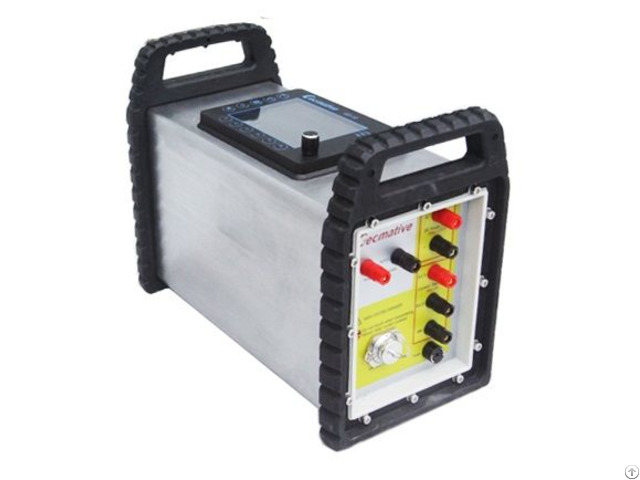

GD-10 series is a new electrical geophysical exploration system with highly engineered & cutting edge technology with a revolutionary change.

It is promoted to market focusing the best solution to meet emerging technological advancements, cost affordability, flexibility in field practices, the greatest accuracy in geo-electrical exploration, the enduring sustainability for a basic user to a progressive researcher.

GD-10 series supports1D VES, 2D ERI and 3D ERT Resistivity/IP measurement, which are the versatile geophysical method, apply for a broad range of applications, as groundwater and mineral exploration, infrastructure site investigations and so on.

GD-10 series including Senior, Supreme 2D, Supreme 2D Plus, Supreme 3D and Supreme 3D Plus with different configurations.

Power: 600V/1200Vp-p, 4A, 2400W

Function;

* SP(self-potential) survey & 1D Resistivity VES survey

Application :

* Underground water exploration

* Pollution monitoring and mapping

* Salinity control

* Depth-to-rock determination

* Weathered bedrock localization

* Depth and thickness of aquifers

* Civil engineering

* Archaeology

Feature:

* Modular Design: Hardware, Software and License are separate entity.

It supports online upgrade for more function.

* Receiver and Transmitter designed in one hardware unit.

* USB serial interface enables the instrument to communicate with computers for upgrade or data manage.

* Receiver supports transient over-voltage protection for input voltage; transmitter supports protections of over-voltage, over-current, AB open-circuit, reverse connect.

* Real-time on-side measuring data evaluation.

* 8GB storage capacity for data, including measuring parameters (voltage, current, resistivity, relative error, SP, array constant, measuring point and so on), device parameters, and project parameters.
