Gck Low Voltage Switchgear - China

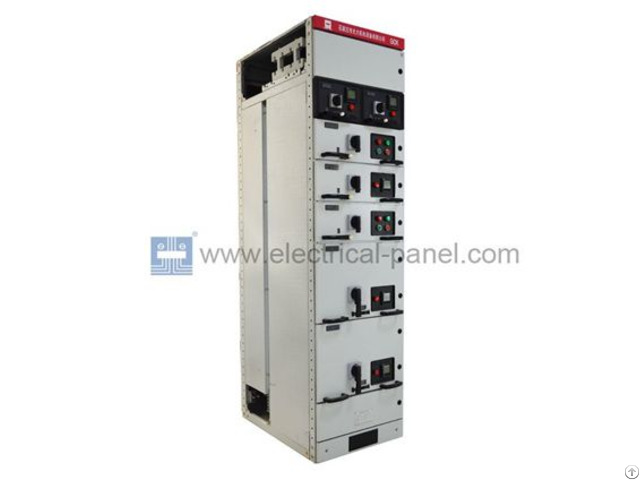

GCK LOW VOLTAGE SWITCHGEAR

factories Low Voltage Electric Panel

mines Low Voltage Electric Panel

The Main Features

1, The cabinet is partially welded with 8mF cold-formed steel.

The cabinet parts and special supporting parts are supplied by the company to ensure the accuracy and quality of the cabinet

2, The internal structure is galvanized, the external is phosphatized, and then it is sprayed with electrostatic epoxy powder

3, The top cover of the cabinet is removable.

It can be easily installed by removing the top cover.

The four corners of the cabinet are equipped with lifting rings for lifting and loading

4, The cabinet is divided into three separate zones of bus room, function unit room and cable room, which can prevent accident diffusion and facilitate live maintenance

5, Functional unit: feed unit, motor unit, public power unit

6, Each ark can install the drawer of 9 one unit at most or 18 0.5 unit drawer

7, On the back of the function unit, there are main circuit inlet and outlet plugs, auxiliary circuit secondary plugs and earthing plugs.

Earthing plugs ensure the continuity of the protection circuit when the drawer is separated and connected

Product Introduction

The cabinet as a whole is designed according to the requirement of modern industrial product modelling design, use golden section proportion to design cabinet body appearance and the division dimension of each part, make whole beautiful and generous

use environment

1, The elevation of the installation site shall not exceed 2000m

2, The ambient air temperature shall not be higher than +40℃, lower than -5℃, and the average temperature within 24h shall not be higher than +35℃.

When the temperature exceeds the limit, the capacity reduction operation shall be carried out according to the actual situation

3, The inclination of the device to the vertical plane during installation shall not exceed 5, and the whole group of cabinets shall be level

4, The device shall be installed in a place free from violent vibration and shock and not sufficient to expose electrical components to undue corrosion

5, Special requirements of users can be negotiated with the manufacturer to solve

Product Advantage

GCK type low voltage switchgear section ability strong dynamic stability good high temperature resistance Good dynamic stability, high temperature resistance, reasonable layout, diverse electrical schemes, series of strong versatility units can be combined into different schemes

The basic cabinet rack of this cabinet is a combined assembly structure with high subsection capacity,, advanced and reasonable structure, and arbitrary combination of various scheme units.

More information can view here.
