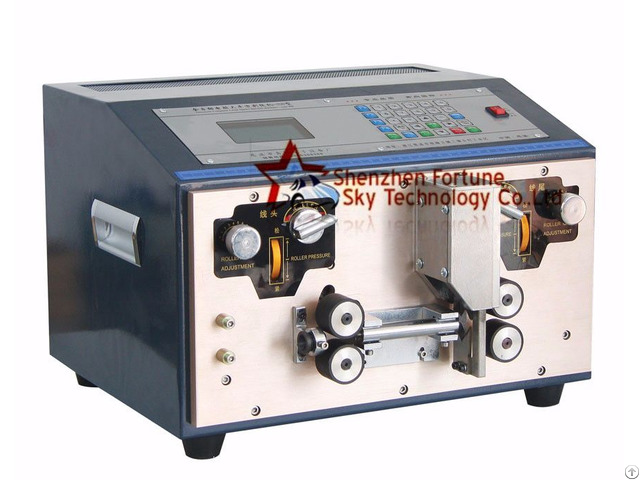

Fully Automatic Large Square Wire Stripping Machine - China

The machine adopts hybrid driven microcomputer LCD screen control system, in the processing range can be arbitrarily set the length of the cutting line, stripping length, has quantitative and timing start function.

Specialized for thick wire or cable, especially for BV, BVR cable wire processing used in the automotive, power distribution box.

4 Wheels Machine working vedio: https: //vimeo.

com/183339291 6 Wheels Machine working vedio: https: //vimeo.

com/276066390 8 Wheels Machine Working Vedio: https: //vimeo.

com/276067904 Technical Parameters Mode BJ-900 BJ-960 BJ-980

Function Wire Cut, Both-ends Strip, Intermediate Strip Wire Cut, Both-ends Strip

Cutting wire core 0.1-25 mm2

0.1-50 mm2

(BV 16mm2, BVR 35mm2)

2.5-50 mm2

(BV 25mm2, BVR 50mm2)

Production Capacity 1000-4000 wires/hour(decided by wire type) 800-2000 wires/hour for 980

Cutting Length 0.1mm-99999.9mm

Intermediate strip no.

13 strips

Stripping Length Strip front 0.1-50mm Strip rear 0.1-30mm Strip front 0.1-250mm Strip rear 0.1-120mm Strip front 0.1-200mm Strip rear 0.1-120mm

Accuracy of inlet outlet motor Mute Hybrid Stepping Motor 0.1mm per step

Remark Function Auto-outlet, Auto-inlet, Timing start

Driving Mode 4 wheels 6 wheels 8 wheels

Dimension 420X297x345MM 530X420x370MM 530X430x330MM

Net weight 35KG 35KG 45KG

Blade material Import tungsten steel/Highspeed steel
