Fst200 202 Wind Directon Sensor Vane Anemometer - China

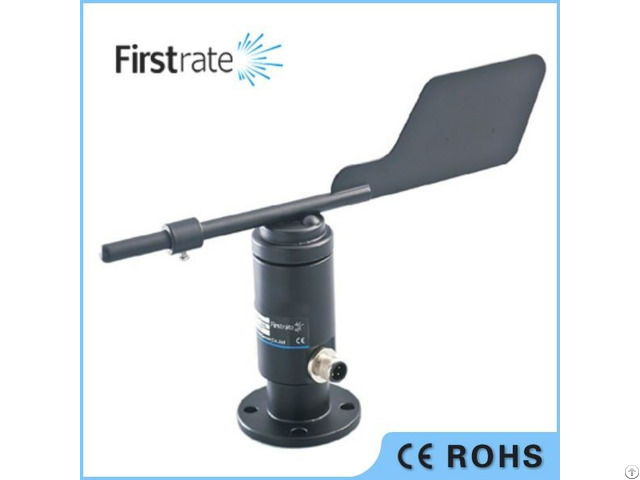

FST200-202 wind directon sensor wind vane anemometer is mechanical rotate sensor, cup turns round once be blown.

Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are installed inside the sensor, it outputs voltage and current signals by electromagnetic induction, the value and horizontal wind speed are linear relation.

Sensor external parts all are made of alloy material and finish by surface powder coating, featured with water proof, corrosion resisting.

Inside and turning position have sealing rings with nice sealing function, stop water, salt fog and dust getting in.

FST200-201A Auto-heated wind speed sensor is build-in electronic automatic heating system, when temperature fall to under 0°C, system will automatic heating, melting ice to prevent external turning parts freeze.

Features:

Strong RFI & EMI resistance and automatic temperature compensation

High sensibility, high precision, high frequency response and permanent stability

Excellent resistance against impact, overload, shock and erosion

Small and exquisite, easy to take, simple to install

Alloy material, reasonable structure and nice outlook

Application:

Working aloft testing and control

Engineering machine testing and control

Weather station and environment protection testing and control

Port and wharf environment testing and control

Other industrial automation about wind speed and direction testing and control Technical Index:

Project Parameter

Technical Index Testing range 0~360º Start wind speed ≤0.8m/s Resolution 22.5 º Accuracy ±3 º Working Environment Temperature: -20°C~+85°C Humidity≤95%RH Output 0-5VDC 4-20mA Resistance for current output 250Ω Working Voltage 12~30VDC (common 24VDC) Limit wind speed Max: 70m/s 30min Electrical connection M12
