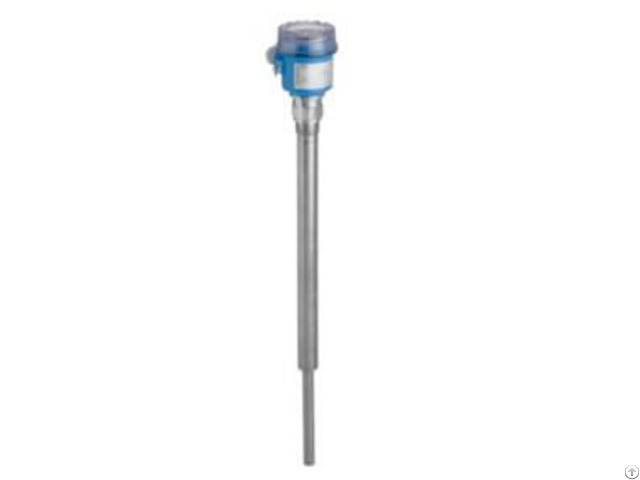

E H Vibronic Point Level Detection Soliphant Ftm21 An246a - Germany

Measuring Principle Vibration Solids

Characteristic / Application Point level switch for fine grained solids

Single rod

Universal

No calibration required

Not affected by build up or external vibration

Robust

Switch value visible from outside

Tube extension

Supply / Communication 10 - 45 VDC

19 - 253 VAC relay

DC PNP 10 - 45 V

Ambient temperature -40°C .

70°C

(-40°F .

160°F)

Process temperature -40°C .

150°C

(-40°F .

300°F)

Process pressure absolute / max.

overpressure limit Vacuum .

25 bar

(Vacuum .

360 psi)

Min.

density of medium 200 g/l

Main wetted parts 316L

Process connection Thread

R 1"

R 1 1/2"

1 1/4" NPT

1 1/2" NPT

Sensor length 500 mm (20")

1000 mm (40")

1500 mm (60")

Communication DPDT relay

DC PNP max 350 mA

Certificates / Approvals ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI

Options Sliding sleeve available

Application limits Density: < 200g/l

Grain size: > 25mm (1")

Not for fluidised media
