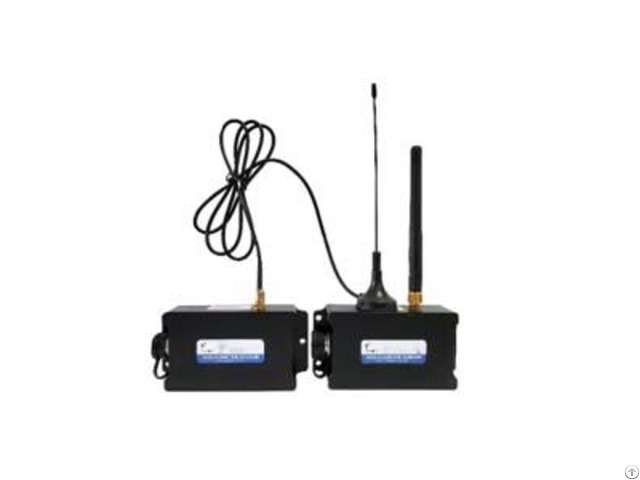

Digital Wireless Transmission Dual Axis Tilt Sensor - China

ER-TS-5296 Features:

1 - Accuracy: 0.1°, resolution: 0.01°;

2 - Dual-axis inclination monitoring (single-axis optional);

3 - Frequency response: 100HZ.

ER-TS-5296 is based on Bluetooth, Zigbee (optional) wireless transmission technology of high performance sensor, the series of wireless tilt sensor measurement range of ±90°, accuracy: 0.1°, resolution: 0.01°, optional, suitable for industrial site, building, civil engineering security monitoring system.

Industrial equipment wireless transmission distance: Bluetooth<50 meters, Zigbee<450 meters.

The product has the advantages of compact structure, small size, simple and convenient use, wireless digital signal transmission mode eliminates the tedious wiring and noise interference caused by long cable transmission; Industrial-grade design has extremely high measurement accuracy and anti-interference ability, wireless sensor nodes can form a huge wireless network, supporting thousands of measurement points at the same time for inclination monitoring, supporting professional computer software, real-time data measurement and recording.

Features

Dual-axis inclination monitoring (single-axis optional)

Frequency Response: 100HZ

Output mode: Bluetooth, Zigbee (optional)

Wide voltage input: DC 9~36V (DC5V can be customized)

Volume: (107*55*27mm) (customizable)

High vibration resistance: >3500g

Measurement Range: ±0~±90° (Customizable)

Baud rate: 2400~115200 (optional)

Wide temperature operation: -40~+85°C

Protection level: IP67 Application

Railway locomotive monitoring Vehicle undercarriage monitoring

Precision machine tool level control

PTZ levelling

Ship attitude measurement

Precision laser platform equipment

Based on tilt monitoring

Satellite solar antenna positioning

Medical equipment

Various engineering machinery angle control
