Digital Output Dual Axis Tilt Sensor - China

ER-TS-5249DI Features:

1 - Two axis tilt monitoring;

2 - Output frequency 5~100HZ optional;

3 - Full range accuracy 0.3°, resolution 0.05°.

Introduction

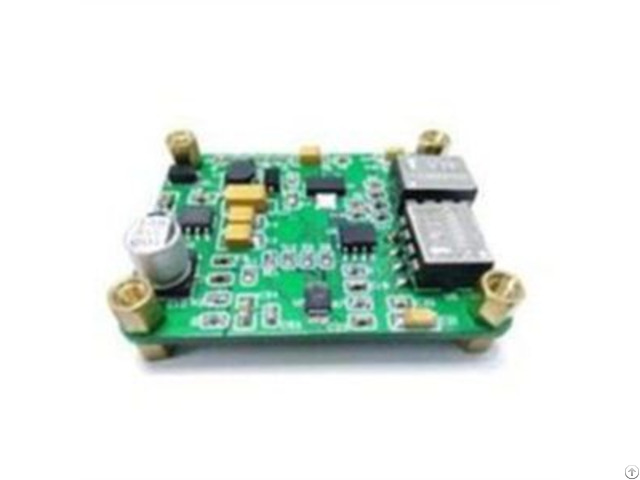

ER-TS-5249DI Digital Two Axis Tilt Meter is a new generation of digital small volume MEMS tilt sensor with built-in dual channel earth gravity tilt unit, which can be converted into inclination change by measuring static gravity acceleration.

Thus the tilt and pitch angle of the sensor output relative to the horizontal plane can be measured.

The output mode of RS232, RS485 or TTL and MODBUS level interface standard are optional.

Due to the built-in MCU control system, the output linearity of the sensor can be modified twice, which makes up for the accuracy decline caused by insufficient correction in the analog model.

The product adopts non-contact measurement original quantity, which can output the current attitude inclination in real time.

The operation is simple, and there is no need to retrieve the two surfaces of the phase change installation.

It has strong resistance to external electromagnetic interference and can adapt to long-term work in harsh industrial environments, which is an ideal choice for industrial automation control and platform attitude measurement.

Features

Two axis tilt monitoring

Full range accuracy 0.3°, resolution 0.05° Output frequency 5~100HZ optional

Input voltage DC 5V

Wide temperature working -40~+85℃

Range 0~±90° (optional)

High vibration resistance >2500g

Baud rate 2400~115200 (adjustable)

IP67 protection level

Output RS232/RS485/TTL/MODBUS (optional)

Small volume (33*27*8mm) (customizable) Applications

High voltage power line tower pole monitoring

Satellite solar antenna positioning

Aerial work vehicle

Mining machinery, oil logging equipment

Medical equipment

Hydraulic lifting platform

Tilt based monitoring

Various construction machinery angle control

Inspection of bridges and dams
