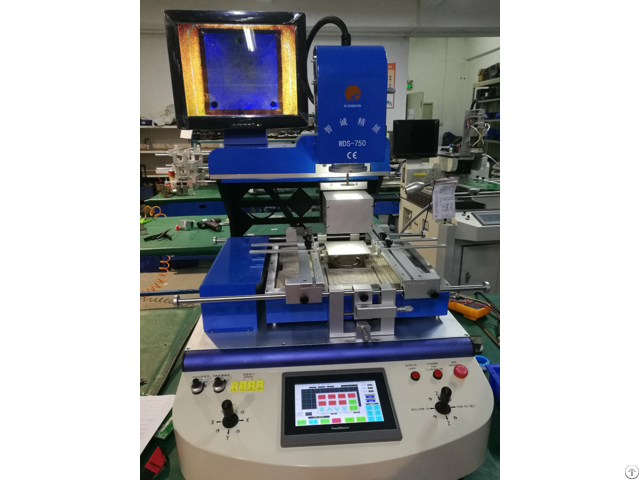

Customer Highly Praised Wds 750 Automatic Soldering Bga Rework Station - China

Customer highly praised WDS-750 automatic soldering station bga rework station Contact: Shirley Tel: 0086 0755 27336219 Skype: salesool-wisdomshow WhatsAPP/Wechat: +86 15573072473 WDS-750 auto bga rework video: https: //youtu.

be/5fbCW4nN3w4 Features of WDS-750 auto bga machine

.

Touch screen interface, heating time, heating temp, temp rise speed, cooling time, alarm advance, vacuum time are set up inside the touch screen, easy to use;infrared bga rework station

2 - Panasonic PLC, independent control temperature control module, shows 3 temp curves all the time, 4 independent sensors, check the temp accurately for the chip points, ensure the weld yield;

3.3 independent heating zones, each heating zone can set up the heating temp, heating time, temp rise rate;Six period of heating temperature, simulate the reflow heating mode, set up as Preheating, keeping, heating, welding, welding, cooling;

4 - Auto feed chip, auto pick up chip, auto blowing chip, can identify the central position automatically when optical alignment;

5 - Multifunction mode choice, four modes as weld, remove, mount, manual, automatic and semi-auto function, meet the various needs of the users;

6 - Uses the high precision K-type thermocouple closed-loop control which is imported from USA, with the unique heating method, ensure the weld temp precision control within ±1 ℃;

7 - Uses imported optical alignment system, 500 pixel HD camera, HDMMI HD signal output, 15 inch HD LCD, high accurate micrometer X/Y/Z axis adjustment, ensure the location precision within 0.01-0.02mm;

8 - The upper heating head and placement head are designed 2 in 1, different size of heating nozzles are provided, easy to remove and install, can be customized, meet the more requirement for users;

10 - Equipped the extra camera to obverse the solder ball melting, to ensure the temp curve and weld effect(this function is optional).

infrared bga rework station Parameter of WDS-750

Power: 6800w

Up heater power: 1200w

Down heater power: 1200w

IR heater power : 4200W(2400W control)

Power supply: (Single Phase) AC 220V±10 50Hz

Position way: Optical lens+ Vshape holder+laser positioning

Temperature control: High precision K shape sensor(Closed Loop), up and down independent temperature heating zone, Precision can reach±1℃

Material: High sensitive touch screen+temperature control module+PLC+step drive

PCB Size: Max: 500×450mm, Min: 10×10mm

Thermo-couple Ports: 4pcs

Chips magnification times: 2-30

PCB thickness: 0.5-8mm

BGA size: 0.8mm-8cm

Min.

chips pitch 0.15mm

Mounting BGA weight: 1000g

Mounting precision: ±0.01mm

Size: L670×W780×H850m m

Optical alignment lens: Motor drive can move front back right left

Weight: 90kg

Company Contact:

• Posted By: Shenzhen Wisdomshow Technology Co., Ltd.

• Phone: +8615573072473

• Address: No. 6 building,Haosi Western Industrial Park,Xihuan Road,Shajing Town,Bao'an District,Shenzhen,China, Shenzhen , Guangdong , China

• Email:

• Website: http://www.wdsbga.com

• Business Description: Professional manufacturer for BGA rework station, the factory is located in Shenzhen.

  All of our bga repair machine are touch screen, hot air+infrared, easy to use, save your time.

  We have been doing domestic business over 10 years, and joined alibaba from 2013.

  Strong R&D team, launch the new models according to the market needs.

  Free training, lifetime technical support.

  Any needs, pls contact with me.
