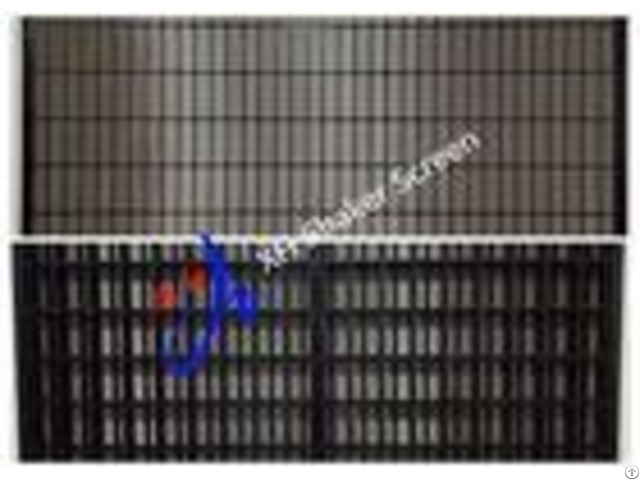

Composite Frame Mongoose Shaker Screen Ss Wire Mesh For Oil Well Drilling - China

SS wire mesh Composite Mongoose Shaker Screen for oil well drilling 1: Description SS wire mesh Composite Mongoose Shaker Screen for oil well drilling.

These products screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate and steel frame combined together.

because of different mesh size and hole size, get an better filtering effect.

The bottom high strength steel frame, supporting bar with the moderate tension screen cloth, combined together, infinitely enhance the screen intensity and endurance, get an better fiteringeffective.

Mesh sizes ranging from 20 to 325, specially customized.

2: Specifications - - - - Product name | SS wire mesh Composite Mongoose Shaker Screen for oil well drilling | Wire mesh material | SS304 SS316 | Size | 1165 x 585 mm | Weight | 12 kgs | Screen layers | 2 or 3 layers | Mesh count | 20-325mesh | - - - - 3: Advantages About the plate of our shaker screen, we usually produced the thickness of the plate which was 1.5mm.

But according to our clients feedbacks, the plate broken up easily.

So we increase the thickness of the plate, now we have the types of the plate is 1.8mm, 2.0mm and 3.0mm.

Composite material shaker screen has lighter weight.

Furthermore, it can be repaired easily.

Due to the patented plug-repair system, the time for repairing the damage of the screen mesh is reduced largely and it only needs less than two minutes.

When repairing the damaged screen mesh, there is no need for removing the damaged mesh as well as the processes of cutting, gluing and bonding the mesh.

Composite screens provide longer life and greater screen area.

4: Application Widely used in petroleum drilling machine, solids control equipment, desander, desilter and so on.

Especially, it is the important fitting of drilling slurry purified equipment.

For acid, alkali conditions screening and filtering.

Used as Mud network for the oil industry, chemical fiber industry for filter screen, electroplate industry to make pickling network, etc.

5: Pictures
