Commercial Advertising P4 Hd Led Screen Adjustable Brightness Energy Saving - China

P4 Indoor HD SMD LED Screen / indoor led module easy installation indoor full color vedio led display screen Feature: 1 - Easy to install and disassemble.

2 - Adjustable brightness: The brightness can be adjusted according to your application and surrounding lighting conditions.

In doing so, you can not only save power, but also be in control to maintain high-quality image displays.

3 - Automatic backup system: Our LED Displays could utilize two computers to ensure interruption-free display of images and videos.

For instance, if one unit was to shutdown due to technical issues, the other unit acts as a back-up solution automatically.

4 - The better quality/price ratio in LED Displays field.

5 - All-weather designs: With an IP 65 rating, our cabinets offer ventilation and protection from rain or water damage.

6 - High refresh rates: With high refresh rates, our products can display flicker-free video images including live video feeds.

Application: This kind of LED full color mobile led display screen is appliled for advertising, city beautifying, information publicity, great concerns and relative activities.

Parameter - - - - Unit Module | Item | Parameter | | Model Number | SF-SS4-16-A | | Module size | 256mm*128mm | | Pixel pitch | 4mm | | Pixels Density | 62500Pixels /m2 | | Pixel configuration | 1R1G1B | | LED Package mode | Nationstar SMD2121(Gold Wire) | | Pixel resolution | 64dots(W)*32dots(H) | | Max Power | 18W | | Module thickness | 22mm | | Module Weight | 0.21kg | | Drive type | Constant drive | | Scan mode | 1/16 | | Port type | HUB75-A | | Brightness of white balance | 1500cd/m2 | LED Cabinet | Dimension | 512mm*512mm* | | Monomer Module Number | 8pcs | | Power supply | 5V/40A*200W | | Thermal discharge | fan 1pcs | | Pixel per cabinet | 256mm*128mm | | Best viewing distance | 4M20M | | Best viewing angle | 110(W) 110(H) | | Temperature | storage: -35+85 working: -20+50 | | Relative humidity | 10%-95% | | Thickness | 122mm | Power | Working voltage | AC220V10% | | Average Power consumption | 170W/ | | Max.

Power consumption | 480W/ | | Current | 20mA(single LED) | Control system | CPU | Pentium4 or above P4 | | Operation system | WIN98/2000/NT/XP/WIN7 | | Control method | Synchronization | Main technical parameter | Driving device | Constant drive IC | | Refresh frequency | 1400HZ | | Grey scale/colors | 4096, 16.7M Color 4096gray level/16.7M colors | | MTBF | 9000hours | | Power switch | Automatic switch | | Display Mode | 800*600/1024*768 | - - - - Application Areas : --- Outdoor advertising, digital billboards, advertising in big companies --- Sports halls, fields, playgrounds.

--- Airports, bus stations and railway passenger terminals.

--- Facades of shopping malls, department stores, banks and car dealerships.

--- Architecture and social projects, information systems in cities.

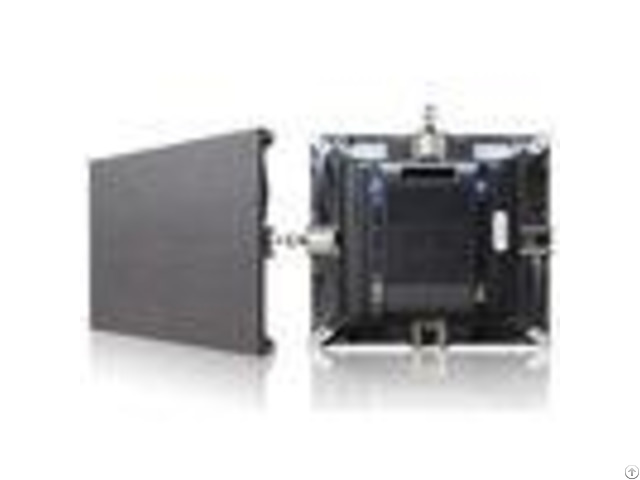

Product Show
