Cf 212 Unbalance Load Pfc Three Phase Four Wire - China

Description

Features

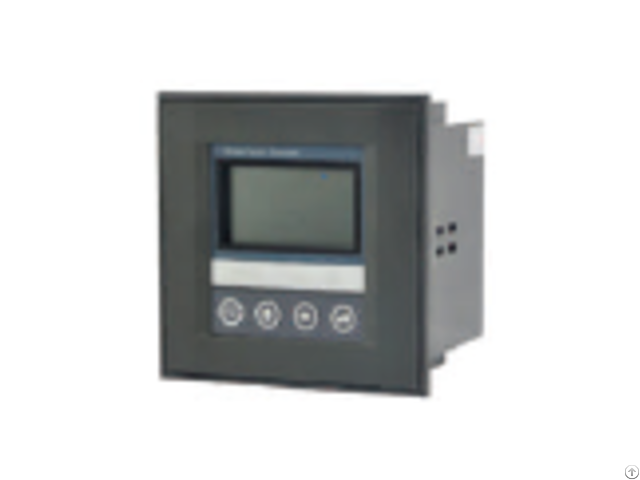

CF 212

Unbalance Load PFC

Three phase four wire

CF-212 used in Three phase 4 wire system, provide each phase power factory control, perfect solution for unbalanced load system.

Free to set the single phase/three-phase

capacitor control step, with smart switching

control, identifies the power of the connected

capacitor stages and connects or disconnects

them in an optimized manner as required by

the actual mains conditions.

Max 16 step control, 5A/250V relay output or

12VDC output.

Option RS-485 communication

port, easy for user connect to PLC and build

SCADA system.

Features

·Unbalance load phase compensation type

·Provide current, voltage, COS

measurement and display

·93*70mm LCD display screen

·Support max 16 control channel (default 12

channel)

·Users free to configure single phase/three

phase capacitor control channel

·Anti-harmonic design, can protect

capacitor in high harmonic transient

·Optional relay or thyristor output

·RS485 port optional

·380VAC self power supply(690V can be

customized)
