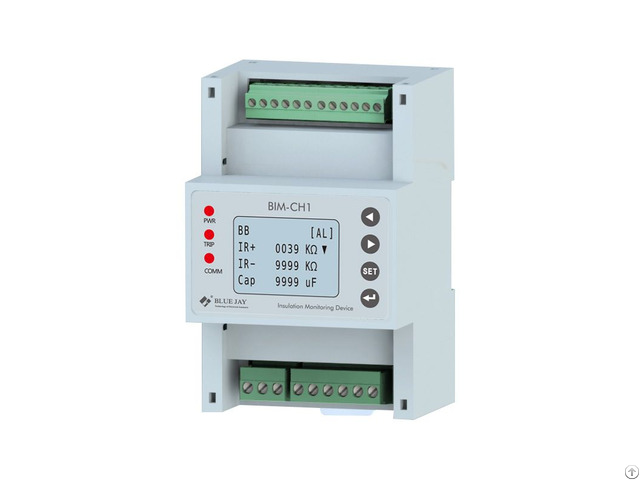

Bim Ch1 Insulation Monitoring Device For It System - China
price: 180.00 Dollar US$
The BIM-CH1 insulation monitoring device monitors the insulation resistance of DC systems (IT systems) devices up to DC 0- 1000V.
BIM-CH1 has insulation monitoring start and stop functions.
After insulation monitoring is turned on, it can real-time monitor the insulation resistance of the positive and negative poles to the ground.
The monitoring results are not affected by DC voltage fluctuations and the symmetry of the insulation resistance of the positive and negative poles.
BIM-CH1 is equipped with RS485 /Modbus communication, which can remotely monitor the system status.
BIM-CH1 uses two working principles for monitoring: the unbalanced bridge method to monitor the insulation resistance value to the ground, and the balanced bridge method to monitor the voltage value to the ground.
Optional temperature sensors can be used for system temperature measurement.
