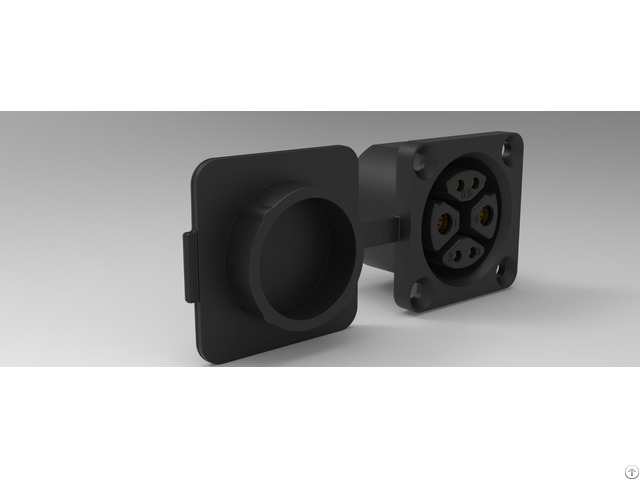

Battery Connector 2 4 48v - China

BATTERY CONNECTOR 2+4 48V Electrical Characteristics

Rated Voltage

48V AC

Rated Current

Power 25A/45A, Signal 5A

Withstanding Voltage

500V

Insulation Resistance

≥20MΩ

Contact Resistance

≤10mΩ

Mechanical Characteristics

Mating Type

Insertion Force 80N Max, Extraction Force 30N Min

Mating Cycles

3000Times

Performance

Operation Temperature

-25℃~+80℃

Protection Degree

IP67

Wires Specification

Max Outer Diameter

24mm

Mating Length

70mm

Contact Material

Copper alloy plated with sliver which conforms to military standard

Wire Section

0.34mm²+ 4.0mm²

IP67 Industrial Battery Connector, ROHS Battery Connector, Copper Alloy Battery Connector

Higo is a China supplier of IP67 industrial battery connector, Our products have the features of dustproof and waterproof, IP67 Splitter Connector, Environmental Materials Signal Connector, Dustproof Waterproof Signal Connector and passed ROHS and REACH certification, Our products and services will make you satisfied.
