Automotive Pvc Tube Cutting Heat Shrink Sleeve Machine Xx 100s - China

price: contact company for price

Automotive Pvc Tube Cutting Heat Shrink Sleeve Machine Xx 100s

Products Photos Catalog Automotive Pvc Tube Photos Catalog

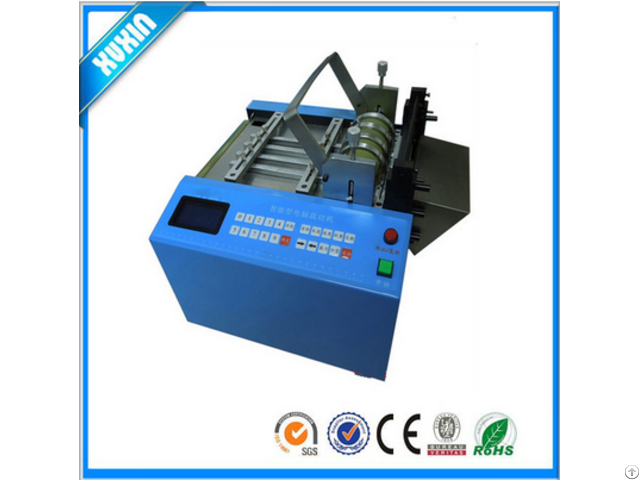

Heat shrinkable tube& all kinds of tube cutting machine X-100S

Features:

1 The machine is highly efficient and energy-saving green, improve production automation and energy conservation, the use of microcomputer numerical control device, with a stepper motor feed and slowdown motor cutter.

2 The material cutting length, the number of cutting, feeding speed free to set.

3 high precision, fast, low loss, cutting stability.

Type design in line with ergonomic principles, easy to operate and so on.

Application:

High-efficient energy-saving XX-100 automatic pipe cutting machine for cutting velcro, cotton yarn, elastic band, plastic belt, zipper, PVC casing, heat shrink tubing, silicone tube, fiberglass tube, Teflon casing Wire, small wire, conductive cloth / foam, battery separator, nickel sheet, diffusion sheet, reflective film, double-sided tape, Mylar, insulation paper, PE, copper / aluminum foil, cable, release paper Inch cut to use.

Parameters:

Model: XX-100S

Control mode：the latest generation ARM control system

Motor system：86 Stepper motor

Tool material：imported SKD-11 high-speed steel

Cutting Speed(knives / min)：150

Display: LCD screen display

Motion mode：automatic feed and cutting of the two-axis movement (y / z)

Operating mode：simple operation, the interface text prompts

Input power: AC / 220V / 50, 60hz

Cutter power (W): 250W

Cutting width: 1-100mm 1-120mm 0-160mm 0-200mm (wider can be customized)

The cut length: 1mm-9999mm

Accuracy: 0.1mm

Cut quantity: 30, 800 pieces / hour

Warranty period: one year warranty

Packing size / weight：500 × 450 × 450mm / 32 kg


Company Contact:


  • Phone: 18262996996

  • Address: No.177,Louyuan Road,Yushan Town, Kunshan , Jiangsu , China

  • Email: Email


Published date: January 4, 2017

  • Business Description: Sales wire cutting and stripping machine;scrapping machine;tube cutting machine;belt cutting machine;tape dispenser;terminal crimping machine and other small machines
