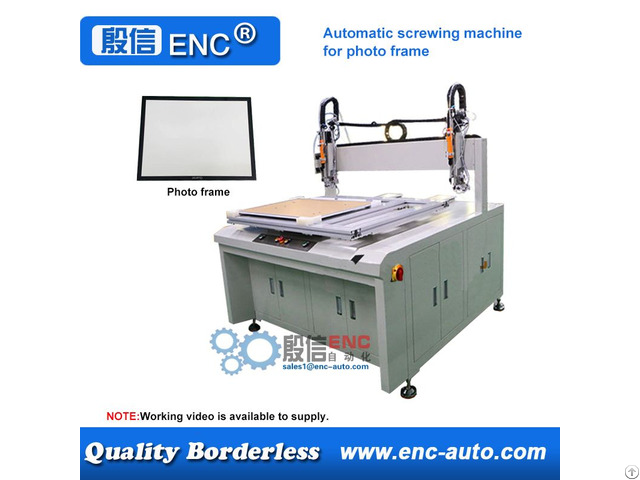

Automatic Screwing Tightening Fastening Machine For Photo Frame Rahmen - China

Features:

1)Adopt the design of double screwing spindles and one slipping table structure, The two screwing spindles can work at the same time without interference.

2)This set automatic screwing tightening fastening machine for photo frame rahmen can meet different dimension photo frame rahmen just require adjusting the fixture and switching the program simply.

3)This set automatic screw tightening fastening machine just require replacing the fixtures and adjusting the distance between two tightening spindles.

then it can meet various types of power strip.

4)Huge screw feeder can hold 2000~2500 pcs of screws one times.

So you should never need to worry the matter of lacking screws during production any more.

5)Equipped with the LED touch screen which can display the alarm in real time, So it is very convenient for operator to find and solve the problem in a short time.

6) The machine owns the function as the following: Quantity statistics(OK amount and NG amount), thread slip detection, floating detection, screw omission detection etc.

7) Adopt the ASA brand electric screwdriver especial for automation as the driver, Torsion outputs stably, Which can ensure a perfect assembling quality.

8) Universal power supply: 110-240ACV, 50~60Hz.

Model and specification:

Model ENC-ST550T

Production efficiency 2~3 pcs/Min.

Universality Various types (Just require replacing fixture and shifting program)

Power supply 110~240ACV, 50~60Hz

Dimension 1240x795x1780 mm

Weight 350 kg

Screw driver type ASA electric screwdriver (For automation application only)

Capacity of vibration bowl 2000~2500 Pcs

Torque 3 kgf/cm²

Automation level Semi-automatic type
