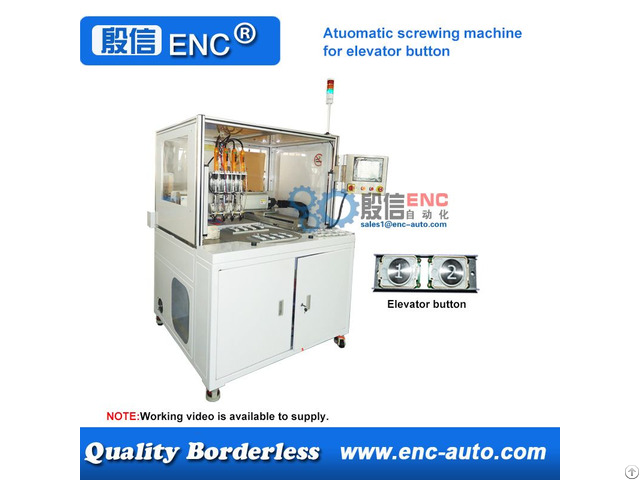

Automatic Screwing Tightening Fastening Machine For Elevator Button - China

Features:

1) It adopts the structure of double stations, The machine starts to tighten the screw once one station enters the working area.

At the same time, The another station return to the waiting area, The operator takes out the finished elevator button firstly, Then puts in the semi-finished elevator button, Which can ensure the screw assembling, finished product blanking and semi-finished product loading going on synchronously.

2) This set automatic screwing tightening fastening machine for elevator button adopts four spindles screwing system, It can assemble 4 screws one times, The productivity can be improved for more than 4 times.

3) Huge screw feeder can hold 2000~2500 pcs of screws one times.

So you should never need to worry the matter of lacking screws during production any more.

4) Equipped with the LED touch screen which can display the alarm in real time, So it is very convenient for operator to find and solve the problem in a short time.

5) The machine owns the function as the following: Quantity statistics(OK amount and NG amount), thread slip detection, floating detection, screw omission detection etc.

6) Adopt the ASA brand electric screwdriver especial for automation as the driver, Torsion outputs stably, Which can ensure a perfect assembling quality.

7) Universal power supply: 110-240ACV, 50~60Hz.

Model and specification:

Model ENC-ST700SF

Production efficiency 16~20 pcs/Min.

Universality Various types (Just need to replace the fixture and adjust the space among screwing spindles)

Power supply 110~240ACV, 50~60Hz

Dimension 1200x1100x1880 mm

Weight 720 kg

Screw driver type ASA electric screwdriver (For automation application only)

Capacity of vibration bowl 2000~2500 Pcs

Torque 12 kgf/cm²

Automation level Semi-automatic type
