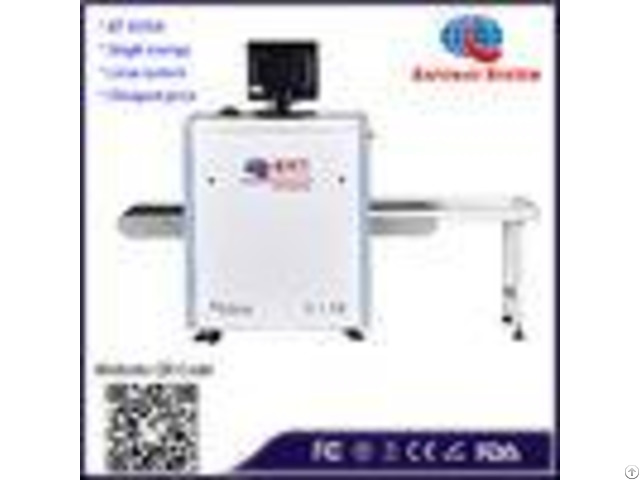

At5030a Single Energy Lowest Cost X Ray Baggage Scanner For Small Parcel And Handbag Inspection - China

AT5030A Single Energy Lowest Cost X-ray Baggage Scanner for Small Parcel and Handbag Inspection Model Number AT5030A Advantanges Comprehensive leadership: First all-digital security inspection machine of China: from signal detection to image display, all signals are transmitted and processed digitally, with strong anti-interference ability and offer high definition scanned image Unique system: with embedded Linux operating system, multi-core ARM, the system features a simple architecture, low power consumption, energy saving and environmentally friendly, meanwhile it has a real-time status monitoring function to keep abreast of the device work process.

Safety and environmentally friendly: The equipment meets safety and environmental standards.

Stable and reliable: The production process is strictly controlled in accordance with the IS09001 quality management system.

Through rigorous high-low temperature experiments, wet heat experiments and vibration experiments, it is certified that the product runs continuously for more than 10, 000 hours without failure.

Equipment Functions Imaging process functions: Color/BW, Local Enhancement, Super Enhancement of High Penetrating Power, Enhancement of low Penetrating Power, Super Enhancement, Negative, Brightening, Darkening, Gray-Level scan, Zoom in and out, Previous/Next.

System functions: Power-on self-test, multi-level user management, image management, TIP management, curve diagnosis, keyboard diagnosis, device information query, multi-format image export, OSD operation function, image mirroring, 1-16 times continuous magnification, magnifying glass, Operator training, accurate positioning of package images, empty channel reminders, remote operation software, one-button shutdown, and intelligent roller engine (optional).

Parameters - - - - Model Number | AT5030A | Conveyor Speed | 0.22m/s | Max.

Load | 100kg | Sizes without table | 1660mm*746mm*1165mm(L*W*H ) | Unit weight | 260KG | Penetration | More than 11mm steel | Wire resolution | 0.0787mm wire | Penetration resolution | 0.127mm wire | Spatial resolution | Vertical: 1.0mm, Horizontal: 1.0mm | X-ray dosage /scan | Less than 1Gy | Boundary leakage | Less than 0.3Gy/h | X-Ray generator | Anode voltage: 80KV, 100% oil cooling | Operation temperature/Humidity | 5C~40C;0%~90% | Operating system | windows | Power supply | AC220V+10%~-15%, 50Hz3Hz | Power consumption | 0.5KW | - - - - Product pictures:

Company Contact:

• Posted By: Safeway Inspection System Limited

• Phone: 86-136-70213490

• Address: Room 308, Building E, QiFeng Digital Park, BaiNiKeng, PingHu Street, LongGang, Shenzhen, China, Shenzhen , Guangdong , China

• Email:

• Business Description: Safeway Inspection System Limited, established in 2008, brand owner of Safeway System, Secu Scan and Chinasafe Equipment, formerly named Shenzhen Security Electronics Equipment Co.

  Ltd., is the largest manufacturer of x-ray baggage scanners in China, with the widest product line of Security Equipment.
