450mhz 17dbi Base Station Parabolic Grid Antenna - China

price: contact company for price

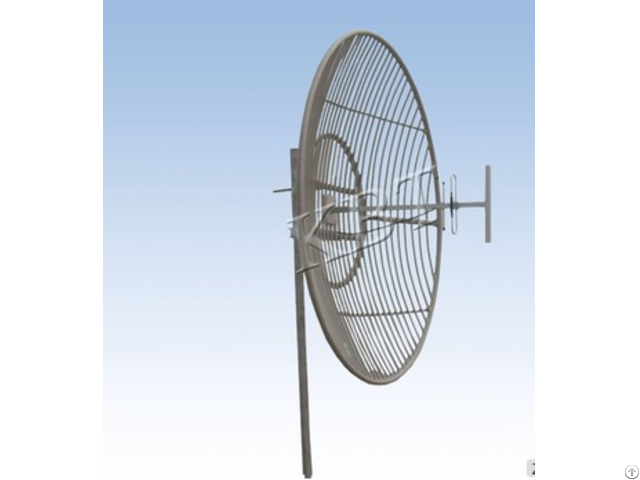

450mhz 17dbi Base Station Parabolic Grid Antenna

Products Photos Catalog 450mhz 17dbi Base Photos Catalog

Specification

450MHz 17dBi SCDMA UHF Base Station Parabolic Grid Antenna, Repeater Antenna

Applications

l SCDMA450 System

l Long range communications

l Base Station Antenna

l Repeater Antenna



Features

l High Gain, Low VSWR

l Welded Aluminum Grid Reflector

l UV stable light gray powder coat finish

l Low Wind Loading

l 20° Down-Tilt Mounting Bracket included

Model

TDJ-450SPL18

Freq.

Range-MHz

450-470

Bandwidth-MHz

20

Gain-dBi

17

Beamwidth-°

E: 23 H: 26

F/B Ratio-dB

≥25

VSWR

≤1.5

Impedance-Ω

50

Polarization

Vertical

Max.

Power-W

100

Connector Type

N Female or Customization

Dimension-m

φ1.8

Weight-Kg

30

Pole Diameter-mm

φ50~75


Company Contact:


  • Phone: 15015632355

  • Address: No.2,Chanxiu Road in Foshan ,Guangdong, Foshan , Guangdong , China

  • Email: Email


Published date: September 26, 2016

  • Business Description: â—†KBT is one of the largest communication antenna export suppliers in China.

    We have abundant experience in research & development ，production and sales.

    â—† We have kinds of product series, the frequency ranges from 1.5MHz to11GHz, it covers the communication systems like HF，VHF，UHF，McWiLLï¼ ŒRFID，GPS，SCDMA，GSM ，CDMA，3G，LTE，WLAN ，Wi-Fi，WiMAX and microwave which can meet customers multiple needs.

    We can also provide kinds of relative antenna products and accessories, such as splitter, coupler, surge lightning protector, clamp and cable etc.
