385v 420v Ac 60ka Din Rail 3phase Surge Protection Device - China

price: contact company for price

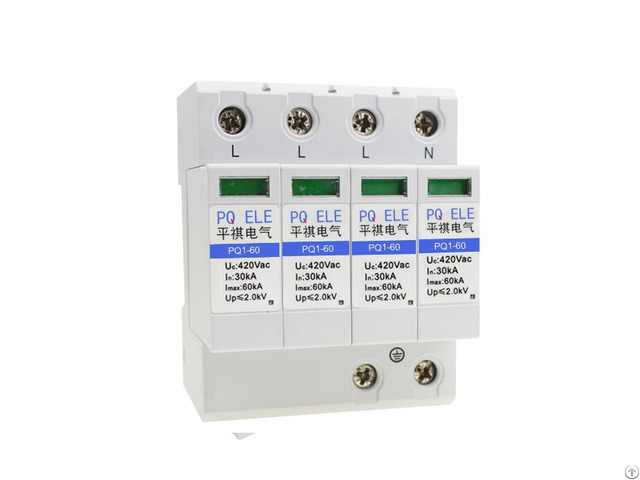

385v 420v Ac 60ka Din Rail 3phase Surge Protection Device

Products Photos Catalog 385v 420v 60ka Din Photos Catalog

385V/420V AC 60KA DIN rail 3phase surge protection device Specification details:

Model PQ1-60

Poles 4P

Max.

continious working voltage(Uc) 420V AC(can customized)

Nominal discharge current(In) 30kA

Max.

discharge current(In) 60kA

Voltage protection level(Up) 2.0kV

Matched circuit breaker/Fuse 32A

Response time <25ns

L/N wire section 2.5mm2

PE section 4mm2

Installation DIN rail

Case protection degree IP20

Operating state/ fault indication Green/ Red

Remote signal function Can also picking

SPD type T2


Company Contact:


  • Phone: 15558881002

  • Address: No. 159 Changjiang road, Liushi town, wenzhou , zhejiang , China

  • Email: Email


Published date: October 5, 2019

  • Business Description: Our Zhejiang Pingqi electric Co., Ltd. Has 7 years manufacturer and export experience.

    Exported to 17countries, gained high reputation from overseas customer.

    CE certificate gained.

    We supply pure sine wave power inverter, surge protector, DC circuit breaker, DC fuse, MC4 connector, DC isolator, MPPT solar controller and other solar items with high quality and competitive price.

    OEM and ODM service supply.

    We put quality on the top priority, and strictly control on every procedure.

    If you are interested in our products or customized service, kindly feel free to contact us.

    We'll be pleased to supply you all the best.
