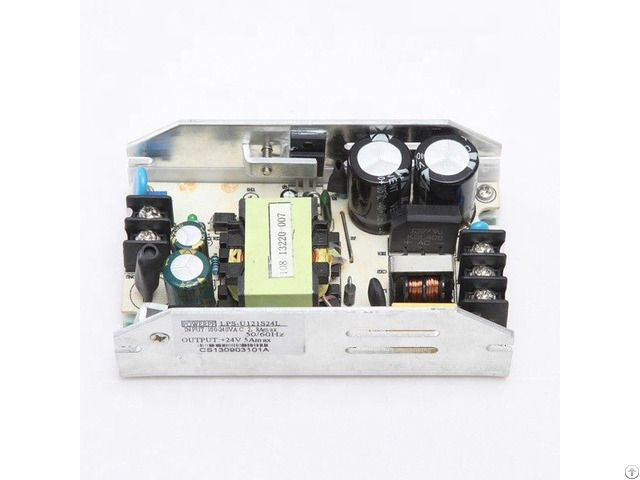

120w Smps 24v 5a Circuit For Lcd State Lighting Dc Power Supply - China

Place of Origin: CN;GUA

Output Power: 101 - 200W

Output Type: Single

Output Voltage: +24Vdc

Brand Name: ETOP

Model Number: LPS-U121S24L

Input Voltage: 100-240VAC

Output Frequency: 47-63Hz

Output Current: 5A

Dimession: 103*64.5*34 - 5MM

Power: 120w

Efficiency: 80%

Protection: OVP OCP OTP SCP

Working tem: 0~+40 degree

Material: FR4 pcb, RoHS plating, 105 degree long life capacitors

Weight: 0.2Kg

Application: LCD CCTV, HDDBOX, DVR, LED-TV, MiNi sound box, Robot cleaner, Warranty: 3 years

Product Name: 120W SMPS LCD State Lighting 12V 10A DC Power Supply

Product Discription

120W SMPS 24V 5A Circuit For LCD State Lighting 12V 10A DC Power Supply Features:

1 - Universal AC input/full range; 2.100% full load burn-in testing; 3 - LED indicator for power on; 4 - Constant voltage type; 5 - Fully enclosed plastic case; 6 - No load consumption < 5W; 7 - Class I power(with earth pin); 8 - Three pole IEC320-C14 communication interface.

Parameters:

Input Volt & Freq

100-240vac 47-63hz

Start, Rise time

2000ms, 30ms/230vac, 3000ms, 30ms/115vac full load

Working enviroment

0~40 degree, 20~90% RH non considering

Temperature coefficient

+-0.03%

Protection

Over load >105%-150%, hiccup mode auto recovery

Over voltage >115%-135%, hiccup mode auto recovery

Over temp EMC Standard

EN55022, ClassB, EN61000-3-2, EN61000-4-2, 3.4, 5.6, 8.11 Safety Standard

EN60950-1, CCC, GB4943, J60950

Withstand voltage

I/P-O/P: 1.5KVAC I/P-PG: 1.5KVAC

Leakage current

0.75mA/240vac

Dimesion 103*64.5*34.5mm
