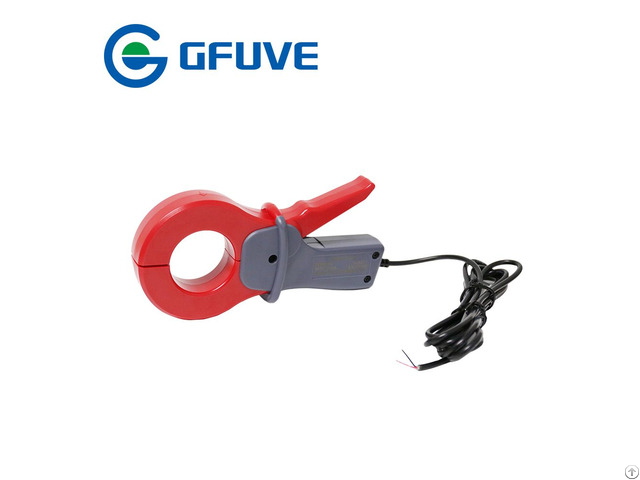

1200a 2mhz Bandwidth Oscilloscope Ac Current Clamp On Ct - China
price: 308.00 Dollar US$
The round jaw design on the S50 Series AC current clamp on CT along with the high content permalloy core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important from 10Hz to 10MHz.
Measurement range is 1mA to 1200A.
The S50 clamp on ct is a general purpose 1200A AC current clamp designed for use with DMMs & BNC, power loggers and energy meter calibration instruments that have a current input.
It has a 1000: 1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw.
The S50 clamp on CT has an integral 2.5m lead terminated.
The rounded jaw design on this current clamp makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.
Parameter:
Accuracy class； 0.1%, 0.2%, 0.5%
Ratio: 1000: 1; 2000: 1; 1000: 5(customized)
Primary current: 0-500A AC and 0-1000A AC
Signal output: 1mV/A, 1mA/A
Secondary current: 0-1A or 0-5A AC
Frequency range: 10Hz-10MHz
Dimensions: 105*218*30mm
Weight: 650g
Holding wire diameter: 50mm
Company Contact:
- Posted By: BEIJING GFUVE ELECTRONICS CO LTD
- Phone: 18901232181
- Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China
- Email:
- Website: https://www.gfuve.com/
Published date: January 24, 2024
- Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
