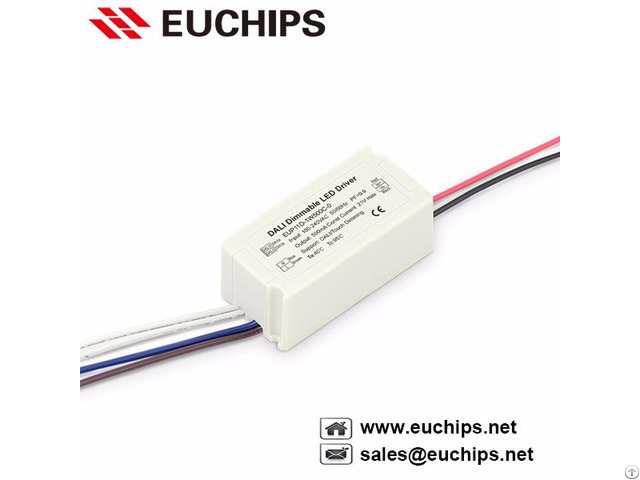

11w 500ma Dali Dimming Constant Current Led Dimmable Driver Eup11d 1w500c 0 - China

Feature

1 - Single channel constant current output

2 - Wide range of input voltage 100VAC ~ 240VAC

3 - Support Touch-DIM function

4 - High efficiency up to 83%

5 - Built-in active PFC function

6 - Protections: Short circuit, over power.

7 - Suitable for indoor LED lighting application

Technical Parameter

Model: EUP11D-1W500C-0

Output Current: 500mA

Output Voltage: 21V

Rated power: 11W

Channels: 1

Current Accuracy: ±3%

R & N (Max): 3Vp-p

Input Voltage Range: 100~240VAC

Frequency Range: 50/60Hz

Power Factor(Type): PF≧0.9

Efficiency(Type): 83%

Leakage Current: <1mA/240VAC

Inrush current(Type): <5A at 230VAC

Protection: Short Circuit, output close, recovers after fault condition is removed; Over power, above 110%-150% rated output power, Output voltage limiting

Dimming: DALI Dimming/TouchDIM44

Dimension: 73(L) * 36(W)*29(H)mm

G.

W: 105g

Packing: 316(L)*214 (W)*179 (H)mm, 100Pcs/11.2Kg/Carton

Working temp: -20℃ ~ 40℃

Working humidity: 20~90% RH
