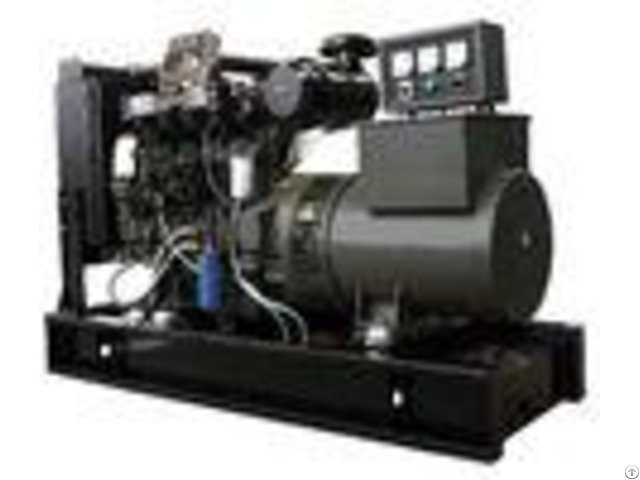

1000kw 1250kva Mitsubishi Diesel Engine Generator Set With Iso9001 Ce Certification - China

AC 3 Phase MITSUBISHI Diesel Generator 1000 kw / 1250 kva Detailed description: Output Ratings - - - -

Gensets

Model | Prime | Standby | kW | kVA | kW | kVA | SM1250E5 | 1000 | 1250 | 1100 | 1375 | - - - - - - - -

Voltage | 380V-415V | 220V-240V | 190V-208V | Amps | 1582-1728 | 2736-2985 | 3157-3457 | - - - - Ratings and Performance Data - - - -

Engine Model | S12R-PTA | Engine manufacturer | Mitsubishi | Number of Cylinders | 12 cylinders | Cylinders arrangement | 60 Vee | Cycle | 4 stroke | Aspiration | Turbocharged and afterwater cooled | BoreStroke | 150mm x175mm | Displacement | 37.1L | Compression ratio | 14.5: 1 | Standby Power/Speed | 1100KW/1500rpm | Speed Governor | Electrical | Cooling System | Forced water cooling cycle | Steady speed droop | 1% | Total lubrication system capacity | 180L | Coolant capacity (engine only) | 200L | Fuel Consumption at 100% Load | 214g/kw.

h | Starter Motor | LVI 634G | Alternator | LVI 634G | - - - - Advantages of Diesel Generator Set Powered by Mitsubishi Engine:

1 - International Warranty Service

2 - With ISO9001&CE certification

3 - Spare parts are easy to get from worldwide market with much cheaper price

4 - Coupled with Stamford alternator, Marathon alternator or Wattek alternator

5 - Perfect after-service network

6 - Only 50Hz

7 - Rigorous test including 50% load, 75% load, 100% load and 110% load

8 - Short delivery time 1000kva Mitsubishi diesel generator (Control panel) - - - -

Brand | Deepsea/ComAp | The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure information: Overspeed/underspeed, Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under: Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

| | - - - - The Details of 50hz diesel generator: - - - -

GENSET MODEL | OUTPUT(kW) | OUTPUT(kVA) | ENGINE | ALTERNATOR | STANDBY | PRIME | STNADBY | PRIME | MITSUBISHI | STAMFORD | MARATHON | WATTEK | SM675E5 | 600 | 540 | 750 | 675 | S6R2-PTA | HCI 544F | MX-560-4 | WHI 5F | SM750E5 | 660 | 600 | 825 | 750 | S6R2-PTAA | LVI 634B | MX-600-4 | WHI 6B | SM1000E5 | 880 | 800 | 1100 | 1000 | S12H-PTA | LVI 634E | MX-850-4 | WHI 6E | SM1250E5 | 1100 | 1000 | 1375 | 1250 | S12R-PTA | LVI 634G | MX-1030-4 | WHI 6G | SM1375E5 | 1200 | 1100 | 1500 | 1375 | S12R-PTA2 | PI 734B | MX-1240-4 | WHI 7B | SM1500E5 | 1320 | 1200 | 1650 | 1500 | S12R-PTAA2 | PI 734C | MX-1240-4 | WHI 7C | SM1688E5 | 1485 | 1350 | 1856 | 1688 | S16R-PTA | PI 734D | MX-1350-4 | WHI 7D | SM1875E5 | 1650 | 1500 | 2063 | 1875 | S16R-PTA2 | PI 734E | MX-1600-4 | WHI 7E | SM2000E5 | 1760 | 1600 | 2200 | 2000 | S16R-PTAA2 | PI 734F | MX-1600-4 | WHI 7F | SM2250E5 | 2000 | 1800 | 2500 | 2250 | S16R2-PTAW | PI 734H | MX-1800-4 | WHI 7G | - - - - The Details of Mitsubishi 1000kw Silent Diesel Generator Set: Stone Power, Located in Nanjing, China, which is the flourishing area of the world manufacturing, one of the largest manufacturing bases of diesel generater set in China, covering an area of 35, 000 and with a 10, 000 assembly workshop.

StonePower is specilized in designing and manufacturing multi-cyclinder and multi-series industrial diesel generator sets, water pump units and relevant equipments for a variety of application, such as telecommunication system, data center, mining, electric power, harbor equipment, engineering companies, financial systems, hotels, railways, airports, commercial buildings, hospitals, factories and etc.

StonePower adopts internationally and domestically reputed high-uality engines and alternators including Cummins, Perkins Deutz, Mitsubishi, Lovol, YTO for our industrial diesel generator sets, with power range from 20kW to 1500kW and various types of design.

With the compelling quality and service, StonePowerhas built a good reputation with customers in the line of generator sets, our products are exported to morethan 30 countries including Europe, Americas, Middle East, Africa, Asia and other regions.

We dedicate to make this work place safe and efficient.

we are proud of our management team and employees who have best quality and deep experience in the industry.

StonePower is dedicating to establishing good relationship with customers through closed cooperation and integrity.

It has been constantly cooperating with excellent international and domestic enterprises to utilize the best resources to bring Stone Power to cultivate an international brand.
