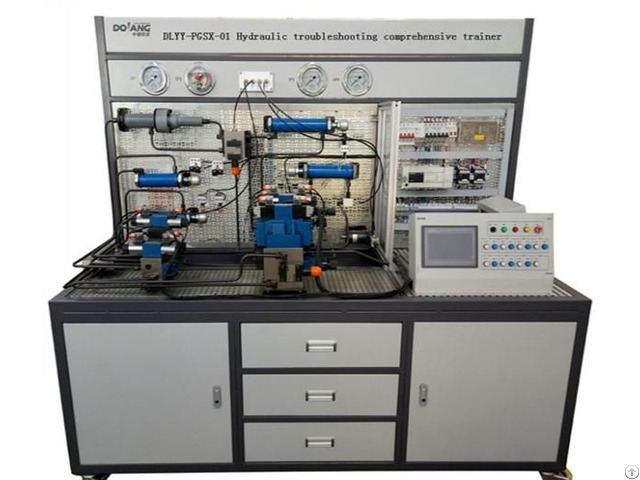

Dlyy Pgsx 01 Hydraulic Troubleshooting Comprehensive Trainer - China

The training object of the hydraulic troubleshooting comprehensive trainer is injection molding machine hydraulic system which is commonly used in typical industrial field.

It trains students understand the working principle and basic concepts of hydraulic transmission, the composition of components and applications, the composition of the hydraulic system of injection molding machines.

Students can grasp the hydraulic system debugging, common hydraulic system fault handling and exclusion.

The hydraulic troubleshooting comprehensive training system is also equipped with intelligent man-machine operation assessment system, teachers can set the fault through the host computer or intelligent man-machine operating system, Students view the phenomenon of failure, analyze specific circuits, and finally do troubleshooting through the intelligent man-machine exchange system.

The hydraulic troubleshooting comprehensive trainer is suitable for mechanical and electrical professional "hydraulic drive", "hydraulic and pneumatic transmission" and other courses of practical training in vocational schools and technical collges.

Technical Parameters

(1) Power: three-phase four-wire ~ 380 ± 10% 50Hz

(2) system rated pressure 7Mpa, rated flow 16L / min

(3) dual motor: rated power 1.5kW, speed 1420r / min, insulation B

(4) Tank: Size 650 (L) X600 (W) X200 (H);

(5) Test bench size: 1900 (length) × 720 (width) × 1800 (high)

(6) Operator Station Vertical Face Mesh Work Plate Size: 1200 (L) * 660 (W) * 33 (H)

(7) The middle of the platform is equipped with oil pan and oil pan size: 1200 (length) * 620 (width) * 33 (high)

Our Hydraulic Training Kit is developed to meet the requirements of vocational training on fluid drive.

It adopts an open-style operating panel, on which various actual industrial hydraulic components can be easily mounted.

Can also Custom Hydraulic Training Equipment For University, Collage.
