Stranded Conductor Ul Cable - China

UL3135 Cable Manufacturer

Product Description: Standard: UL758 File number: E239689

Features: 1) Temperature range: -60℃~ +200℃.

2) Rated voltage: 600V.

3) Colors: transparent, white, black, red, blue, yellow, green, brown, yellow/green 4)Conductor is single or multiple twisted wire made of tin-plating copper, nickel-plating copper.

5)Jacketing material is silicone rubber insulation and braided fiberglass.

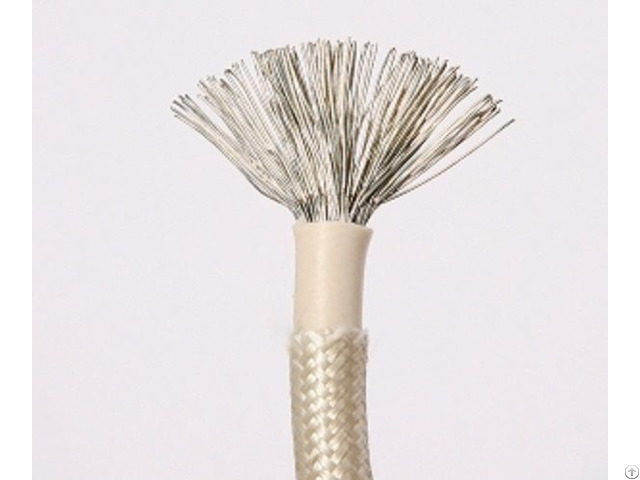

The conductor is flexible stranded.

A silicone compound is applied over the conductor and the wire is then covered with a saturated fray-resistant fiberglass braid.

Applications:

Widely applied for home appliances, lighting equipment, electric instruments, medical unit, and can be used for leads to motors, transformers, appliance, electric or other electrical circuits where a flexible conductor is required to operate under high temperature conditions and where moisture may be present

Structure Size

Conductor Insulation Max Resistance 20℃ Ω/Km

Spec AWG Area mm2 NO/D Diameter mm Nominal Thickness mm Nominal Diameter mm Max Diameter mm 14-1 1.963 41/0.254 1.88 0.8 3.74 3.84 8.96

14-2 1.950 19/0.361 1.81 0.8 3.74 3.84 8.96

16-1 7/0.44 1.50 0.8 3.36 3.46 14.60

16-2 19/0.287 1.50 0.8 3.36 3.46 14.60

16-3 26/0.254 1.50 0.8 3.36 3.46 14.60

16-4 54/0.18 1.50 0.8 3.36 3.46 14.60
