High Filtration Welding Smoke Extractor Precise Portable Dust Extraction Units - China

High filtration precision one suction arm welding shop air filter Working Principle The vacuum pressure air flowing the blower generates enters the purifying chamber through the suction arm or pipe.

The dust contained gas is purified in the purifying chamber through the separation of the filter cartridge.

Through different ways of cleaning (manual cleaning or automatic cleaning) make the ash cake of accumulating in the surface of the filter fall into the fume drum.

After cleaning, the clean air through the air duct is exhausted out by blower.

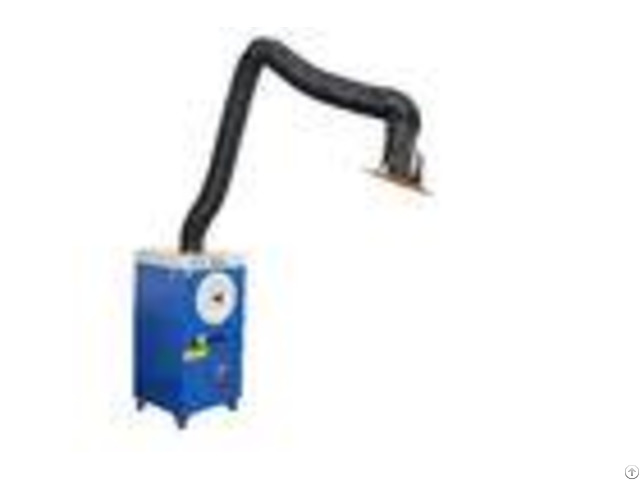

Production introduction Mobile welding fume extractor has two directional and two rotary polyurethane casters with brake device for easy moving and stationing.

It is suitable for the purification of fume and dust generated in all kinds of welding, grinding and other places as well as for collecting rare metal particles and precious material.

Suction arm can be rotated by 360 and can reach the position flexibly and easily by pulling the handle on the hood and position in the absence of external force.

Depending on needs, 2m, 3m flexible suction arm are available.

Suction arm uses high temperature resistant, flame retardant and wearable composite material, it will not crack after burning through by spark and has a longer usage life.

The diameter of suction arm is 160mm.

The filter elment of the welding fume extractor is made of imported PTFE membrane filter material of high filtration precision, and the filtration precision reaches 0.1 m.

In accordance with the extractor work intensity and the amount of dust, the usage life of the filter is different.

On the control panel, it includes: - Fan Switch - Power Switch - Power indicating light Standard Parameters - - - - No.

| Item | Parameter | 1 | Fan type | centrifugal fan | 2 | Treatment of air flow | 1800100 m3/h | 3 | Motor power | 1.5kW | 4 | Power supply | 380V ~/50Hz | 5 | Filtration area | 8 m2 | 6 | Number of filter cartridges | 1 piece | 7 | Filter medium | PTFE Membrane | 8 | Filtration efficiency | >99.9% | 9 | Noise | 745dB(A) | 10 | Cleaning way | Changing filter | 11 | One suction arm | 160mm*3m | 12 | Weight (excluding suction arm) | 1205KG | 13 | Dimensions(excluding suction arm) | 5505501165mm | - - - - Company profile Shanghai Kaisen Environmental Technology Co., Ltd has been always committed to designing, R&D and manufacturing of industrial dust collectors.

Since 2007 we had been engaged in dust collectors for ten years.

Our products are extensively applied to the processing of welding, cutting, grinding, painting, casting, chemical, wood processing, paper and other industries.

The products of Kaisen include mobile welding dust collector, wall mounted dust collector, high vacuum dust collector, laser & plasma cutting dust collector, grinding fume collector, 3D printer dust collector and system solution of fume disposal.

Also, Kaisen had passed ISO9001, ISO14001 and OHSAS18001 approvals, most of products are CE certification.

Our company has a professional, scrupulous after-sell service team who can provide timely and quality service to our customers.

Being market-oriented and technology- leaded, with abundant capital and continuous innovation, we strictly abide by the tenet "Quality First, Customer Foremost", providing a clean and comfortable working environment for workers ina variety of industries.
