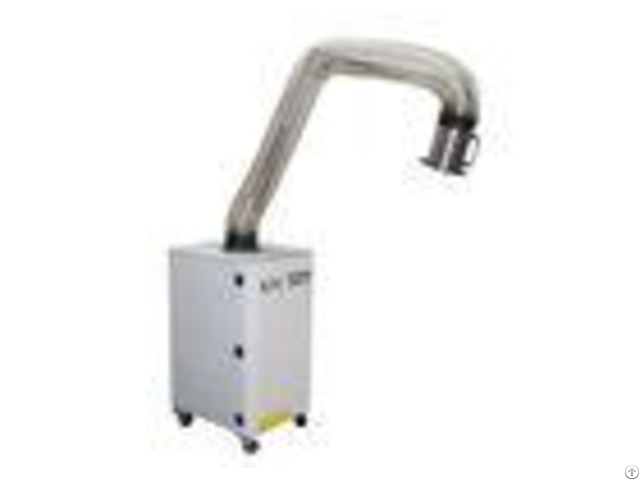

Durable Weld Smoke Collector Stainless Steel Hood Industrial Dust Extraction Units - China

Economical mobile welding fume extractor with 2m arms & stainless steel hood and suiting TIG & MIG welding fume disposal Working principle The vacuum pressure air flowing the blower generates enters the purifying chamber through the suction arm or pipe.

The dust contained gas is purified in the purifying chamber through the separation of the filter cartridge.

Through different ways of cleaning (manual cleaning or automatic cleaning) make the ash cake of accumulating in the surface of the filter fall into the fume drum.

After cleaning, the clean air through the air duct is exhausted out by blower (exhaust gas containing dust standard 2 mg/m) Product Introduction 1 - Mobile welding fume extractor has two directional and two rotary polyurethane casters with brake devicefor easy moving and stationing.

It is suitable for the purification of fume and dust generated in all kinds of welding, grinding and other places as well as for collecting rare metal particles and precious material.

2 - Suction arm can be rotated by 360 and can reach the position flexibly and easily by pulling the handleon the hood and position in the absence of external force.

Depending on needs, 2m, 3m flexible suction arm are available.

Suction arm uses high temperature resistant, flame retardant and wearable composite material, it will not crack after burning through by spark and has a longer usage life.

The diameter of suction arm is 160mm.

3 - The fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer preventer plate which will ramify the fume to avoid residual sparks enter into filter layer directly.

Finally, the fume enters the second layer of HEPA filter cartridge for ultimate purification, and HEPAs filtration efficiency can reach 99.9%.

As the filtering precision of the main filter cartridge reaches the indoor emission standard, the filtered clean air can be directly discharged indoor via the ventin the bottom of the extractor.

4 - The filter cartridge of the welding fume extractor is made of imported filtering material of high filtration precision and can filter out welding fume of 0.5m.

According to the extractors work intensity and the amount of dusts, the usage life of the filter cartridge is different.

Main features: 1 - CE certification and EMC test report is approvable.

2 - Specically suiting for TIG, MIG etc.

small fume volume working conditions.

3 - Small dimension, easy to move, low power and energy consumption, low price.

4 - It's able to change PTFE membrane filter cartridge to get better filtering precision.

5 - Gas-pressue meter from USA, Switzerland switch ( Water proof, dust proof and short-circuit protection) Standard Parameters - - - - No.

| Item | Parameter | 1 | Fan type | centrifugal fan | 2 | Treatment of air flow | 1000100 m3/h | 3 | Motor power | 0.75kW | 4 | Power supply | 220-240V ~/50Hz | 5 | Filtration area | 20 m2 | 6 | Number of filter cartridges | 1 piece | 7 | Filter medium | Synthetic wood pulp fiber filter paper | 8 | Filtration efficiency | >99.9% | 9 | Noise | 745dB(A) | 10 | Ash hopper volume | 2 L | 11 | One suction arm | 160mm*2m | 12 | Weight (excluding suction arm) | 985KG | 13 | Dimensions(excluding suction arm) | 510610990mm | - - - - Nano-meter filter
