Stainless Steel Flexible Hose

PRODUCT PARAMETERS

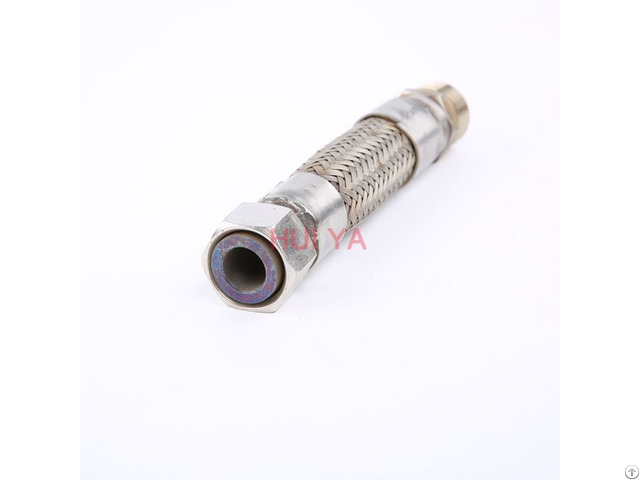

Metal flexible hose is made of stainless steel corrugated hose and outer braided layer (one or multiple layers of wire or steel belt net) with joints or flange at both ends.

It is used for conveying all kinds of medium.

Its characteristic is: corrosion-resistance, high temperature resistance, low temperature resistance, light weight, small volume, and good flexibility.

Metal flexible hose is widely used in the fields of petroleum, chemical industry, aerospace, metallurgy, electricity, gas, building, mechanical, construction, iron and steel, paper making, fabric, medicine, food and vessels for conveying water, steam, oil, chemicals, etc.

Inner tube: T321 corrugated pipe gas Metal Flexible Hose

Reinforcement: 1 or 2 stainless steel 304 braided layer

Working pressure: 200-3250 psi.

Working temperature: from -280 °C to 420 °C.

Our company specializes in producing High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose and Hose Assembly, Kelly Hose, etc.

High pressure stainless steel braided flexible hose technical data

Item name Braid layers I.D. O.D. Min Bend Radius Pressure at 20℃ Weight/foot Static Dynamic WP.

BP.

lbs inch inch inch inch psi psi HYFH-4-1 1 1/4 0.51 2.25 4.5 2500 10000 0.91

HYFH-4-2 2 0.56 3 6 3250 13000 0.3

HYFH-6-1 1 3/8 0.67 3 6 2625 10500 0.31

HYFH-6-2 2 0.73 4 8 3250 13000 0.51

HYFH-8-1 1 1/2 0.83 4.5 7.5 2000 8000 0.39

HYFH-8-2 2 0.89 6 10 3200 12800 0.63

HYFH-12-1 1 3/4 1.16 6 9 1525 6100 0.59

HYFH-12-2 2 1.26 8 12 2625 10500 0.96

HYFH-16-1 1 1 1.43 6.75 10.5 1375 5500 0.73

HYFH-16-2 2 1.54 9 14 2050 8200 1.1

HYFH-20-1 1 1-1/4 1.87 4.5 13.5 1125 4500 1.32

HYFH-20-2 2 1.98 6 18 1800 7200 2.02

HYFH-24-1 1 1-1/2 2.19 5.25 16.5 1025 4100 1.56

HYFH-24-2 2 2.25 7 22 1750 7000 2.55

HYFH-32-1 1 2 2.65 6.75 18 850 3400 1.93

HYFH-32-2 2 2.78 9 24 1325 5300 3.14

HYFH-40-1 1 2-1/2 3.42 7.5 19.5 625 2500 2.72

HYFH-40-2 2 3.53 10 26 1125 4500 4.23

HYFH-48-1 1 3 3.98 11.25 24 563 2250 3.2

HYFH-48-2 2 4.09 15 32 1000 4000 4.72

HYFH-64-1 1 4 4.92 15 30 363 1450 3.79

HYFH-64-2 2 5.03 20 40 625 2500 5.48

HYFH-96-1 1 6 7.12 22.5 45 275 1100 7.01

HYFH-96-2 2 7.26 30 60 413 1650 9.57

HYFH-128-1 1 8 9.34 30 60 200 800 11.38

HYFH-128-2 2 9.56 40 80 300 1200 15.45

Note: The data are based on 20 ℃.

Pressure will decrease as the ambient temperature increases.
