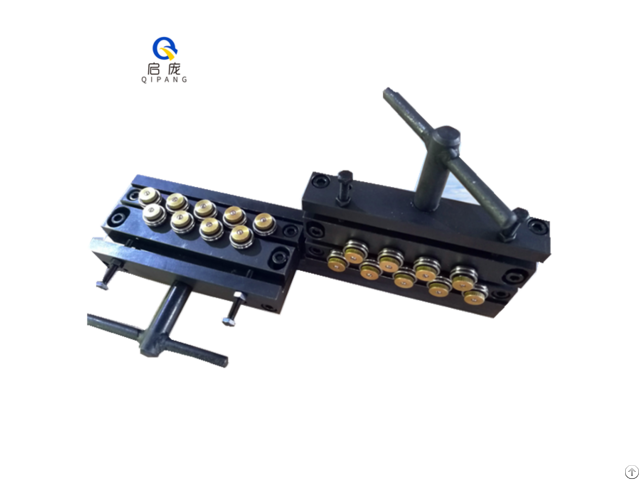

Qipang New Type 14 Rollers Wire Straightening Machine - China

A 14 rollers wire straightening machine is a type of machinery used in the manufacturing process of straightening wire.

It typically features 14 rollers that are used to straighten and smooth out wire as it passes through the machine.

The rollers are usually made of hardened steel and are arranged in a specific configuration to ensure that the wire is straightened evenly and to the desired specifications.

This type of machine is commonly used in construction, engineering, and other industries that use wire as a raw material.

Qipang 14 Rollers Wire Straightening Machine is mainly used on drawing machines.

1, Single and dual plane straightener models JZQ 4-7/14/14AV

2, Eccentric roller open/closing device (lever)

3, Quantity of roller in stock 7+7, From 5 ~ 19 rollers per group (5+5, 7+7, 9+9, 11+11, 13+13, 15+15, 17+17, 19+19)

4, Roller diameters 37mm (1.457"), Customizable 23-120mm (0.905"-4.724409")

5, Adjustable rollers on the upper row

6, Rollers available for light or heavy duty applications

7, Model AS/AD for wire R = 60 N/mm2 (8400 psi) max.

with normal rollers (single or double bearing)

8, Rollers are standard "V" groove profiles but can be provided with "U" grooves 9, according to customer requirements

*Wire Guide included 14 Rollers Wire Straightening Machine Advantages:

1, straightener roller material surface without scratches.

It is made of bearing steel and nylon.

2, straightening wheels are made of bearings, using alloy roller group, carbide wheels, can be configured according to product specifications and customer requirements.

You can do v-groove, U-groove, h-groove.

3, straightener straightness theoretically: the more the number of roller wheels, the better the straightening effect, the more variations, 4, straightener adjustment structure: with handle structure, can be opened and closed as a whole, save time.
