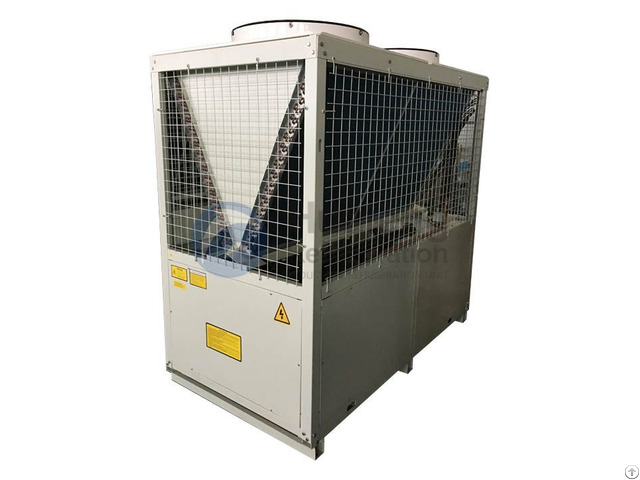

  • Module Air Cooled Heat Pump - China

    price: 15000.00 Dollar US$

    Module Air Cooled Heat Pump, Module Air Cooled Heat Pump for sale, China Multi-Functional Air Cooled Heat Pump

    Description:

    The series modular air cooled chiller cooling capacity from 7KW to 120KW.

    This series units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain.

    The user just need simply connect the pipeline of the water system and the required power supply, then can put into operation.

    This series of chillers is widely used: it can provide process chilled water for industrial and mining enterprises such as textile, chemical and petroleum.

    The manufacturing technology of this product is mature and stable and reliable.

    Features:

    1 - Employing original SCROLL compressor, compressor may according loading auto-adjust, add level sensor for prevent compressor low-loading to luck-oil, extent use life

    2 - Employing all-new imported high class component

    3 - Employing two sets of compressor which can be used jointly or independent

    4 - Switch control, easy operation and maintenance

    5 - The weld of brass pipe is non-oxidization

    6 - Condenser and Evaporator both to conform GB150, GB151, TB/T4750-2003, operation safe Safety system:

    1 Compressor reverse protective

    2 Freeze protector protective

    3 Refrigerant safety valve

    4 Buzzer

    5 High-pressure gauge and Low-pressure gauge

    6 Power phase failure protector

    7 Coil over-heat protector

    8 Temperature auto-switch

    9 Refrigerant shortage protectiv Air cooled industrial chiller(environment-frien dly)

    Model HTB-M9F HTB-M14F HTB-M18F HTB-M21F HTB-M27F HTB-M27F HTB-M36F HTB-M54F HTB-M72F

    Cooling

    Capacity KW 8.8 13.5 18 21 27 27 36 54 72 Kcal/Hr 7568 11610 15480 18060 23220 23220 30960 46440 61920 RT 2.5 3.84 5.12 5.97 7.68 7.68 10.24 15.35 20.47

    Power 50HZ 3P-380V-50HZ

    Comprosser Mode Full closed high efficiency flexible scroll compressor Input power(KW) 2.7 4.29 5.6 6.3 8.3 8.58 11.2 16.8 22.4 Rated load current(A) 5.9 10 12.1 13.8 19.1 20 24.2 36.3 48.4

    Wiring specification 4 6 6 6 10 10 16 25 35

    Add unloading way 0, 100% 0, 50%, 100% 0, 33%, 66%, 100% 0, 25%, 50%, 75%, 100%

    Condensor Cooling fan(KW) 0.18×2 0.24×2 0.3×2 0.6×2 0.6×2 0.78×2 0.78×2 0.78×3 0.85×3 Structure form Efficient internal thread copper pipe hydrophilic aluminium fin+Auxiliary water spray falling film technology

    Evaporater Freeze water temp(℃) Inlet temp 12℃/outlet temp 7℃ Freeze water flow(m³/h) 1.51 2.32 3.1 3.61 4.64 4.64 6.19 9.29 12.38 Waterpipe diameter(DN) 32 32 32 40 40 40 40 50 50

    Safeguard Overload protection, overpressure, inverse phase, open phase protection, exhaust temperature protection, abnormal refrigerant protection, water pump chain protection, etc.

    Size L(mm) 1200 1250 1400 1400 1700 1700 1700 2600 2800 W(mm) 650 900 900 900 1000 1000 1000 1100 1200 H(mm) 1250 1720 1750 1750 1900 1900 1920 1950 1980

    Units Weight Kg 220 280 300 320 350 420 540 610 690 Note:

    1, Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。

    2, Above is my company's industrial water-cooled water chiller parameters, evaporator is shell and tube type, if there is a demand for the built-in bank, non-standard products of water pump, can be designed and manufactured according to the concrete situation.

    3, In order to ensure technology constantly updated, the above parameters are subject to change without prior notice

    4, The specific parameters for non-standard products, welcome consulting our technical department.


    Company Contact:


    • Phone: 0086-0512-69222083

    • Address: Room 305-307,Yuanlian Building,No.1018,Jiayuan Road,Xiangcheng District, Suzhou City, Jiangsu Province, China

    • Email: Email


    Published date: May 17, 2019

    • Business Description: Jiangsu Huazhao Refrigeration Equipment CO., Ltd. is a manufacturing enterprise focus on high quality industrial refrigeration equipment research and development, production and sales.

      Our company various industrial chiller with competitive price include: Air cooled chiller; Water cooled chiller; Low temperature glycol/brine water cooled chiller; Heat pump hot water chiller; Maglev inverter centrifugal water chiller; Oxidation dedicated water cooled chiller.

      Huazhao have been focusing on provide professional solutions for all our foreign and domestic customer in different business and earn a good reputation, such as America, Argentina, Uruguay, Colombia, Chile, Sudan, Saudi Arabia, Oman, Thailand, Indonesia, Qatar, Bangladesh, Somalia etc.

      Our company is the leading international chiller supplier, if you need know price about chiller, E-mail and call are welcome.
