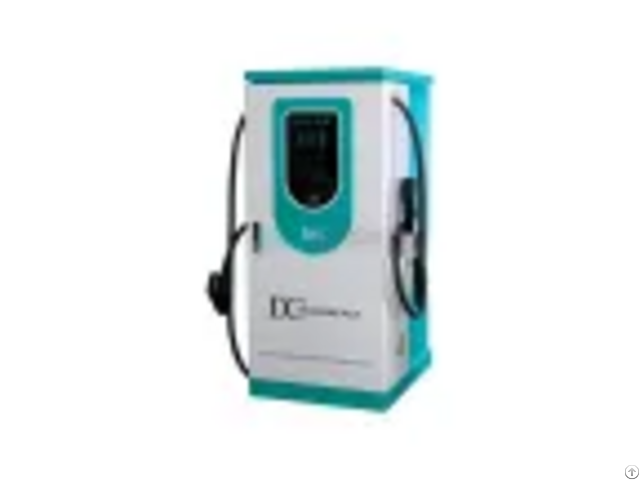

Ground Mounted DC Charger

Ruihua, the preferred energy supplier for EV charging solutions, proudly introduces the Ground Mounted DC Charger—a testament to our commitment to innovation, sustainability, and driving the future of electric mobility.

As a trusted electric vehicle charging pile manufacturer, we have meticulously designed this charger to meet the diverse needs of modern electric transportation.

Ground Mounted Dc Chargers are commonly used in public charging networks, especially along highways or other high-traffic areas where fast charging is essential for long-distance travel.

They are designed for use with electric vehicles that have the capability to accept high-power DC charging, such as many modern electric cars and buses.

Experience the pinnacle of charging efficiency with our Ground Mounted DC Charger.

As a dual EV charger, it caters to multiple vehicles simultaneously, ensuring a seamless and convenient charging experience for EV users.

Equipped with advanced technology, this Ground Mounted DC Charger is set to revolutionize the way we power electric vehicles.

It's worth noting that not all electric vehicles are capable of accepting high-power DC charging, so it's important to check your vehicle's specifications before using a 240 kW DC charging station.

and Ground Mounted Dc Charger can consume 40 kWh of electricity in ten minutes at full load.

The DC fast charging speed of 120 kilowatts is twice that of 60 kilowatts, and during the charging process, the former charges twice as much electricity per unit time as the latter.

DC fast charging pile, with powers of 30kw, 60kw, 120kw, 160kw, etc., is suitable for charging new energy electric vehicles with fast charging interfaces.

The charging power is large and the speed is fast, so it is generally installed in new energy charging stations, shopping malls, gas stations, and other places, suitable for short-term stay fast charging users, convenient and fast.

Ground Mounted DC Charger Details

Multi-standard: CCS1, CCS2, CHAdeMO

Network or standalone operation

Support smart charging and load balancing

Multiple protection to ensure users’ safety

OCPP 1.6 JSON/ OCPP 2.0.1

( Comply with latest OCPP protocol as Ruihua is the member of OCA )

Ground Mounted DC Charger Specification

Input Connection 3-Phase : 3P+N+PE

Input Voltage 400V/AC ±15%

Frequency 50Hz or 60Hz

THDi ≤5%

Power Factor ≥0.98

Output Voltage 150Vdc - 1000Vdc

Max.

Output Current 200A( 250A optional)

Rated Power 120kW - 240kW

User Interface & Control

LCD Display 7" Color Touch Screen

LED Indicator Green/Yellow/Red

Charging Interface CCS2 Plug( CCS1 Plug / CHAdeMO optional )

Number of Charging Interface 2

Energy Measuring Embedded meter, with 1% accuracy

Communication

Backend Ethernet( Bluetooth / Wi-Fi/ 4G Optional )

Charging Protocol ISO 15118, DIN 70121

Backend Protocol OCPP 1.6 JSON ( OCPP2.0.1 )

Protection

Residual Current Device Yes

Internal Fuse Yes

Electrical Protection Over/Under Voltage Protection, Over Current Protection, Short Circuit Protec-

tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault, Surge Protection

Environmental

Operating Temperature -30℃—+55℃

Storage Temperature -40℃—+75℃

Operating Humidity Max.

90% RH, Non-Condensing

Operating Altitude ≤ 2000m

IP, IK Level IP65, IK10

Cooling Method Independent air duct

Mechanical

Product Dimension 1780*800*950 mm (H*W*D)

Charging Cable Length 5m

Weight 60kw: 390kg; 120kw: 420kg;

Mounting Free Standing

Certifications

Certifificate IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24

Safety CE

EMC Class B
