Chain Feeder Printer Slotter Die Cutter Machine - China

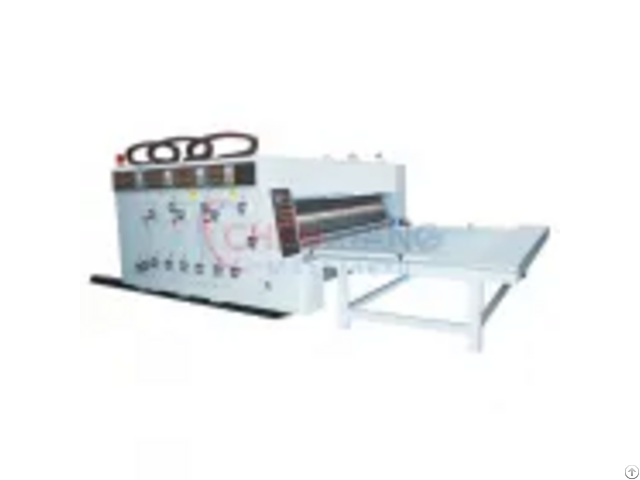

Chain Feeder Printer Slotter Die Cutter Machine

Chain Feeder Printer Slotter Die Cutter Machine has the advantages of beautiful appearance, compact structure and high degree of automation.

High-definition printing, small color difference, easy to adjust.

Features of Printer Slotter Die Cutter

1 - With elegant appearance, compact structure, and the advantages of high degree of automation.

2 - Printing high-defifi nition, tinted error is small, easy to adjust.



3 - Electric separation , pneumatic clamping, pneumatic lift version , automatic distributing.



4 - Printing phase, slot electric 360 ° phase adjustment.



5 - With the installation of oil immersion, increase the life of gear.

If you are interested in our products, please feel free to contact us.

Function of Printer Slotter Die Cutter:

1 - Paper Feeding Unit: Four-hanging chain push paper into the printing group, easy and fast.

2 - Printing Unit: Ink system: High precision anilox roller, rubber roller is made of high elasticity imported rubber.

It has excellent ink transfer and printing effect.

3 - Drive Gear: The gear adopts a non - key connecting device, and the high - precision kicking tooth processing is realized.

Gear accuracy is high, wear resistance is strong, drive stable and reliable, up to the national level 6 standards.

Technical Parameter

Model 920 1224 1424

Max speed(pcs/min) 60 60 60

Max paper feeding size(mm) 900*2200 1200*2600 1400*2600

Max printing size(mm) 900*2000 1200*2400 1400*2400

Min paper feeding size(mm) 280*680 350*680 420*680

Max depth of slotting(mm) 230 300 410

Die cutting precision(mm) ≤±1.5mm

Printing precision(mm) ≤±0.4mm(4 color) ≤±0.5mm(4 color)

Printing plate thickness(mm) 7.2

Paper thickness(mm) 2.5-12

Min slotting interval Normal 160X160X160X160 Reverse 300X60X300X60
