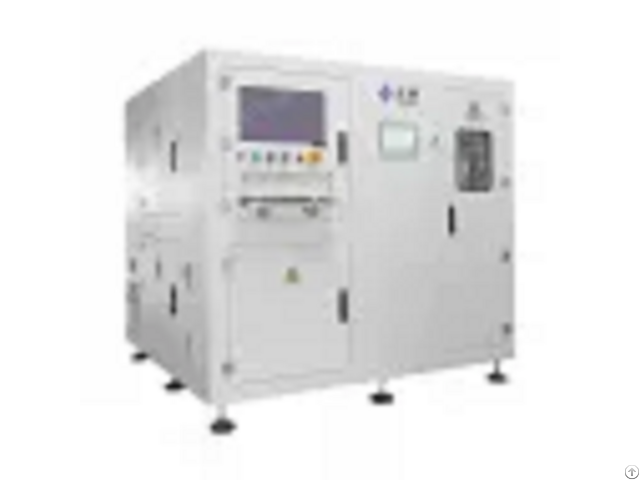

Automatic X-ray Inspection Machine

The X Ray Inspection Machine has a set of X-ray imaging system, four-axis robot automatic loading and unloading, online automatic detection of discrete components in the semiconductor industry, and can adapt to 7-inch, 11-inch, and 13-inch trays.

Usage

The Automatic X-ray Inspection Machine has a set of X-ray imaging system, four-axis robot automatic loading and unloading, online automatic detection of discrete components in the semiconductor industry, and can adapt to 7-inch, 11-inch, and 13-inch trays.

The X Ray Inspection Machine emits X-rays through the X-ray generator, penetrates the inside of the chip, and receives the X-rays from the flat panel detector for imaging.

The image is analyzed and judged through image algorithms to determine good and defective products, and through the re-disc function, it is determined that the chip is in place.

The serial number in the tray, so that the back end can pick out the bad chips.

Automatic X-ray Inspection Machine Characteristics

1 - The self-developed replay algorithm can replay in real time, and replay while taking pictures.

2 - Rich man-machine interaction functions.

The interface picture can be dragged, zoomed, and you can double-click the NG chip on the replay chart to index and display the original picture, NG type and other information of the chip.

3 - The self-developed detection algorithm can automatically and accurately detect defective items such as the line type of the chip and the chip guide.

4 - The software has functions such as scanning code, MES uploading, and manual re-judgment.

5 - High detection efficiency: the entire disk matrix type drawing, no need to pull the material coil; with CCD vision positioning system, the robot automatically feeds the material.

It takes 3min (3000pcs) to inspect the 7-inch tray.

6 - Production line docking: with the function of docking with AGV.

7 - Safety and environmental protection: The entire equipment is interlocked safely, with triple protection functions, and any part of the surface of the fuselage meets the safety radiation.

Automatic X-ray Inspection Machine Technical Parameter

Total size 2010*1850*2300 Total weight 3000kg

Packing size 2150*2000*2400 Packing weight 3500kg

Machine power 5.5kw Machine efficiency 3.5mins/plate

Light tube Closure Maximum voltage 130KV

Detector HD FPD Imaging mode 2.0D

Measuring size 7-13 inches material Measuring Type discrete component Automatic X-ray Inspection Machine Advantages:

(1)Automatic detection

Automatic detection alignment of negative and positive of battery, and statistics the maximum/minimum values at the same time.

(2)Automatic judgment

Automatic make a judgement of NG/OK products according to the setting standard.

(3)Convenient and quickly

The machine is with accurately position, quick and convenient to user.

(4) Safety protection

Doors are equipped with photoelectric sensor.

The machine will immediately stop and get into a protection model if any door is open.

Automatic X-ray Inspection Machine Applications:

Lithium battery, SMT, LED, Electronic products, casting products and so on.

How does Automatic X-ray Inspection Machine Work?

Automatic X-ray Inspection Machine uses the penetrating effect of X-ray rays.

When X-rays penetrate the objects/material, those objects/materials will absorb part of the X-rays and the rest X-rays will be received by the detector.

Different-density objects/materials have different absorbability, which means the detector receives different X-rays after penetrating.

It will show the image on display after the detector converts that X-ray into visible light.

If you want to know more about the X Ray Inspection Machine, please contact Zhengye now.
