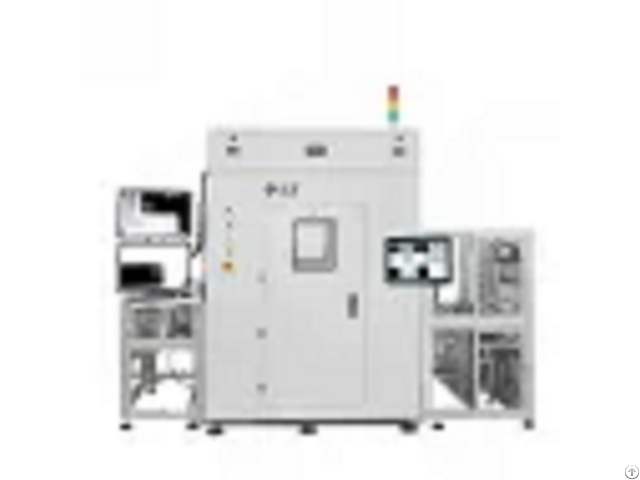

Automatic X-RAY

The Automatic X-RAY is mainly used to detect of Dynamic windings lithium battery.

Two sets of imaging system online detection analysis, for the multi-layer winding power battery online automatic detection

Automatic X-RAY XG5200A/5200B Inspection object

Winding type power battery planar positive and negative pole piece alignment inspection.

Usage

The Dynamic winding lithium battery testing equipment is mainly used to detect of Dynamic windings lithium battery.

Two sets of imaging system online detection analysis, for the multi-layer winding power battery online automatic detection

Dynamic winding lithium battery testing equipment Characteristics

(1)Automatic detection

Automatic detection and sorting OK/NG product.

(2)The database modeling

Customers can freely modeling models as many as 60 according to the testing standard.

Automatic switching by reading bar code or QR code .

(3)Real-time monitoring

All actions, signal, and the state of the hardware are real-time monitored and displayed on the software interface .

(4)Intelligent matching battery

Software automatic determine the A or B type batteries, match the AB model together into the next manufacturing process.

(5)Images and data online displaying.

In order to convenience of observation and recognition, data and images of many parts of the same battery test are shown in the same software interface.

(6)Safety and environmental protection

The whole equipment with good protective function, all part of the fuselage surface radiation meet safety standards.

XG5200A technical parameters

Light tube Light tube voltage MAX 90-130KV (optional as needed) Light tube current MAX 89uA-455uA (optional on request) Focus on size 5-15um Cooling method Forced air cooling

Imaging Systems Type Enhancer / Flat Panel Detector Field of view Φ100mm/114.9mm*64.6mm


(optional as needed) Resolution 1024*1024Pixels/1536*864P ixels (optional upon request) Quantity 4 sets

Detection accuracy Repeat test accuracy 60um

Efficiency Detection efficiency ≥24ppm (detection of four corners) Error rate ≤2% Missing rate 0% Product Superiority Rate ≥99.5%

Safety Standards International radiation safety standards ≤1μSV/hr

Other parameters Computers Industrial control machine / quad-core processor / memory 4G / hard disk 1000G Host size 4000*1600*2200mm Power supply AC220V/10A, about 2500W Temperature and humidity 25 ℃±3 ℃ RH50%±10%

Applicable battery size range Length 70~160mm Width 80~180mm Thickness 5~25mm

XG5200A/5200B technical parameters comparison

Model XG5200A XG5200B

Tube Voltage MAX 90 -130 KV MAX 89 KV

Tube Current MAX 89-455uA MAX 455uA

Focal Spot Size 5-15µm 5-15µm

Cooling Mode Strong wind cooling Strong wind cooling

Resolution 1024 x 1024 /1536 x 864 pixels 1024 x 1024 pixels

Repeat Accuracy 60µm 60µm

Detection Efficiency ≥24ppm ≥10ppm

International radiation safety standards ≤1 usv/hr ≤1 usv/hr

Dimension(L*W*H) 4000*1600*2200 3500*1500*1700

POWER AC220V/10A, ≈2500W AC220V/10A, ≈2500W
