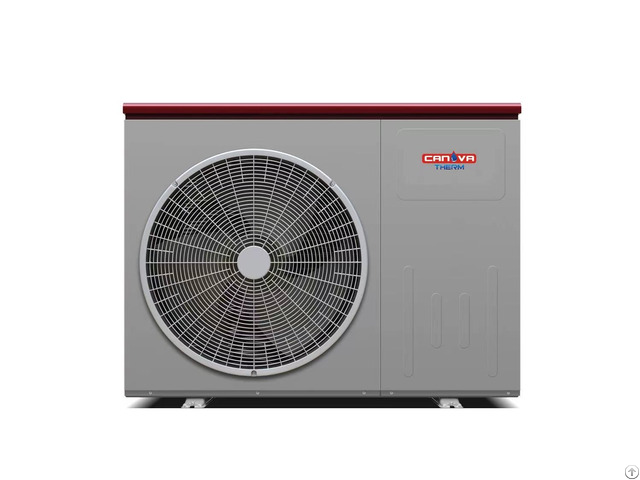

A+++ Monobloc Full Dc Inverter Heat Pump 12.6kw - China

This series-Full Dc Inverter Heat Pump is splendid for domestic central heating and cooling with fan coil units,which its water pump built in.

The water tank connection with this heat pump does not have copper coil heat exchanger inside,which saves the cost of water tank.

DC inverter heat pump can reduce more starting time than normal heat pumps.

It also can adjust the operating speed of the compressor and fan to extend the working life of the machine.

Model: KFV240-B

Max Heating Capacity: 12.6KW

Heating Capacity Range: 4.2~12.6KW

(A7/W35):

Heating Capacity: 10.5KW

Input Power: 2.28KW

Current: 10.9A

COP: 4.6

(A7/W45):

Heating Capacity: 10.3KW

Input Power: 2.63KW

Current: 12.6A

COP: 3.92

(A35/W7):

Cooling Capacity: 7.8KW

Input Power: 2.68KW

Current: 12.8A

EER: 2.91

Power Supply: 220V~230V/1PH

Frequency Range: 30-85Hz

ERP (35℃): A+++

ERP (55℃): A++

Heating output water temp: 25~60℃

Cooling output water temp: 5~20℃

Refrigerant: R32/R410A

Controller: LCD Wire Controller

Compressor Brand: Panasonic,DC Inverter Twin Rotary

Water pump(Built-in): Grundfos Ambient Temp range: -30~45℃

Electric heater(Built- in): 2Kw

Expansion tank(Built- in): 3L

Water flow: 1.8m3/h

Pipe size: DN25

Noise: ≤58dB(A)

Dimension: 1160*390*860mm

Weight: 90kg

Heating test condition 1:

Ambient temp.

(DB/WB)=7℃/6℃, Inlet/Outlet water temp.

=30℃/35℃

Heating test condition 2:

Ambient temp.

(DB/WB)=7℃/6℃, Inlet/Outlet water temp.

=40℃/45℃

Cooling test condition:

Ambient temp.

(DB/WB)=35℃/24℃, Inlet/Outlet water temp.

=12℃/7℃
