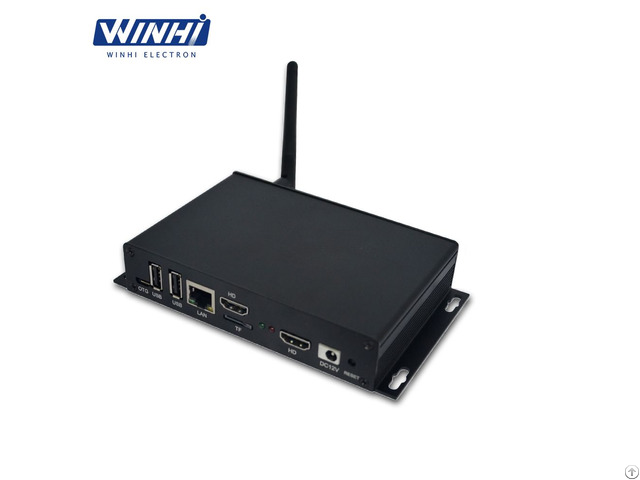

Network Information Publishing Digital Signage 4k Lcd Advertising Display - China

1 - Platform and configuration: (1)Hardware Platform: RK3368 Coretex A53 Eight-core, Dominant frequency 1.6GHz (2)Software Platform: Based on Android 4.4.4 | M2/M3 Android 5.1(3)Memory: DDR-III 1Gbyte(2GB Optional)" 2 - Support 4K UHD Video Decoding 3 - Support HDMI Output and Input 4 - Video and picture file switch without black screen 5 - Screen display area can be devided, simultaneously achieve 2 Video + N Pictures + N Logo + N Subtitles + N Times + N Weather + N Pages 6 - Supports local playback, remote playback, loop playback, timer playback, automatic content update, auto turn ON/OFF and CMS software operations control 7 - Network Information Publishing, including material management, template design, program preview, terminal grouping, program upload/play, play statistics, alarm, rights management, etc

8 - Powerful interactive query editing function, support for picture sliding and jog switch within region, area jump 9 - Support setting the playback task freely, automatically loop playback by day, by week, by month and other modes 10 - Display Content includes web page, video, picture, audio, text, time, date, weather information, news and son on.

11 - Built-in with a variety of transition effects 12 - Multi-language OSD language menu 13 - Supports extended functions: camera, microphone, NFC, printer, numeric keypad, fingerprint, scanning gun, touch screen, human body infrared sensor, gyroscope, gravity sensor and so on

14 - The above same functions can also be applied to 10.1"-46" digital signages 15 - Our professional R&D team can customize personalized products for you HARDWARE INDEX CPU RK3368 Coretex A53 Eight-core, Dominant frequency 1.6GHz

DDR DDR-III 1GB(Option: 2GB)

NAND Default is 8GB NAND Flash(Option: 16GB)

HDMI OUT HDMI 2.0 Standard Display Interface, maximum support is 2160P Output

HDMI IN HDMI 1.4a Standard Input Interface, maximum support is 1080P Input

Video Support MPEG-1/2, MPEG-4, H.

264/AVC, MVC, H.

265/HEVC, GOOGLE VP8, H.

263, VC-1, MOTION JPEG Photo Support BMP, JPEG, PNG, GIF, WEBP Audio Support MP1, MP2, MP3, WMA, WAV, APE, OGG, OGA, FLAC, AAC, M4A

USB 2.0 2*USB 2.0 Host Interface

LAN 10/100M Adaptive Ethernet

TF Card 1 Standard TF Card Interface, maximum support is 128G

WiFi Wireless Protocol 802.11b/g/n

Bluetooth(Optional) Built-in high-performance serial port BT module, support V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0

3G/4G Network(Optional) External USB_3G/4G Module

RTC SUPPORT

TIMER SWITCH SUPPORT

Key Power Switch and Reset Button (operating status manual reset)

Power Input DC 12V Input

SYSTEM UPGRADE SUPPORT USB AND NETWORK UPGRADE

I/O Power Supply Input: AC 100~240 V 50/60Hz

Output: DC 12V, 1.5A Others Shell Color Metal Black Case

LED Power Led, Ethernet Led, IR Led

IR Standard Infrared Remote Control Interface

Accessory(Optional) Remote Control, WIFI Antenna, Adapter

Storage Temperature -10℃~90℃

Operating Temperature 0°~70°

Operating Humidity 0%~95%, no condensation

Remarks: We reserve the right of updating products and function without inform separately.
