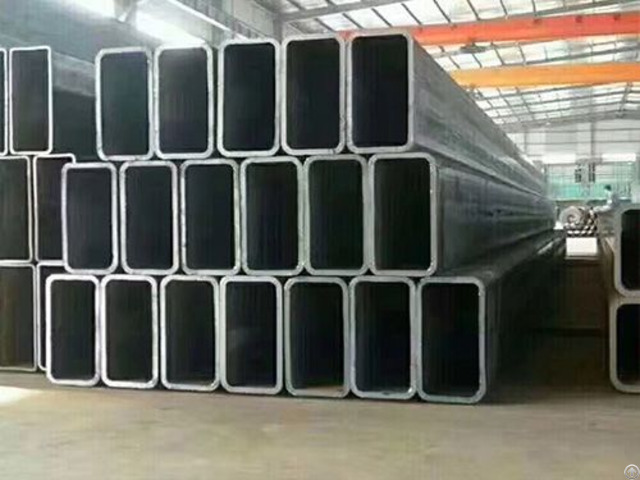

Rectuangle Steel Pipe Hollow Sections Rectangular 10mm X 20mm 600mmx400mm - China

Usage: 1 - Construction: Hall Structure, Sea Trestle, Airport Structure, Shipbuilding, Security Door Frames, Garage Doors, Strengthening Liners of Steel Doors and Windows, Indoor Partition Walls, Cable Bridge Structures and Expressway Safety Guards, Balustrade, Decorating, Residential, Ornamental Pipes

2 - Automotive Parts: Motorcar Case, Car and Bus Manufacture, Vehicles

3 - Agriculture: Agricultural Equipment

4 - Industry: Machinery, Solar Stent, Offshore Oil Field, Mine Equipment, Electromechanical Hardware,, heavy engineering, Mining and Resources, Process Engineering, Materials Handling, Mechanical Parts

5 - Traffic: Walking Rails, Roll-up Doors, Guardrail, Plaza Structure, Signage, Road Furniture, Fencing

6 - Logistics Storage: Supermarket Shelves, Containers, Transport Industries, Commercial Construction

7 - Other: Sports Apparatus, Leisure Equipment, Furniture, School Furniture Quality Standard: GB/T 13793 Longitudinal electric resistance welded steel tubes

GB/T 6728 Cold formed steel hollow sections for general structure--Dimensions, shapes, weight and permissible deviations ASTM A500 Cold Formed Welded and Seamless Carbon Steel Steel Structural Tubing in Round and Shapes

ASTM A 53 Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless

EN10210 Hot finished structural hollow sections of non-alloy and fine grain structural steels

EN 10219 Cold formed welded structural hollow sections of non-alloy and fine grain steels JIS G 3466 Carbon steel Square for general structural purposes BS 1387 Steel Tubes for use for Water, Gas, Air and Steam

BS 6323 PART5 SEAMLESS AND WELDED STEEL TUBES FOR AUTOMOBILE MECHANICAL AND GENERAL ENGINEER PURPOSE

IS : 1161 Steel Tubes For Structural purpose and Electric poles.

IS : 3601 Steel tubes for mechanical & general engineering purposes.

IS : 3074 Steel tubes for Automobile purpose.

IS : 4923 Steel tubes for Hollow sections used in structures

DIN 1626 WELDED CIRCULAR TUBES OF NON ALLOY STEELS WITH

SPECIAL QUALITY EQUIREMENTS DIN 2394 WELDED AND SIZED PRECISION STEEL TUBES Steel Grade:

GB/T 13793, GB/T 6728, GB 15831: Q195, Q215, Q235, Q275, Q295, Q345, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 EN 10210, EN 10219, BS 1387: S185, S235, S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H, St12, St13, St14, St33, St37, St44, ST52

ASTM A500, ASTM A 53: Gr.

A, Gr B, Gr C, Gr.

D, DC01, DC03, 1008, 1010

JIS G 3466: SS330, SS440, SS490, SPHD, SPHE Size:

Hollow Sections: Rectangular: 10mm x 20mm - 600mmx400mm

Wall Thickness: 0.5 - 20.0mm

Length: 0.3 mtr - 18 mtr as customer required QUALITY CONTROL:

Process: SEAMLESS OR ERW

Raw Material: Seamless: Pipe Billet( Hot Rolled, or Con-casting), Mother Pipe

Welded: Hot Rolled Steel Coil (HRC), Cold Rolled Steel Coil (CRC), Pre-painted Galvanized Steel Strip

End: Square cut, Burr removed

Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black Heat Treatment: Bright Annealed, Black Annealed

Packing: Plastic plugs in both ends, Hexagonal bundles of max.

2, 000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips

Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc), Exterior Size Inspection

Mill Test Certificate: EN 10204/3.1A/B
