Polyurethane Foam Insulation Pipe - China

Polyurethane Foam Insulation Pipe

PRODUCT PARAMETERS

If you are finding Polyurethane Foam Insulation Pipe supplier, we will be your best choose! We have our own factory, so we can give you a cheap price! Product Indexes Reference Standard Standard Requirement Our product value

Outer protection pipe

Density (kg/m3) CJ/T114-4.2.3.1 ≥940 948.2

Elongation at break (%) CJ/T114-4.2.3.4 ≥350 618

Tensile yield strength (MPa) CJ/T114-4.2.3.4 ≥19 20.5

Longitudinal shrinkage rate (%) CJ/T114-4.2.3.5 ≤3 1.23

Long term Mechanical properties CJ/T114-4.2.3.6 >1500h(80℃, 4.0 MPa)free from damage Pass

The difference of the melt flow rate (g/10min) CJ/T114-4.2.3.2 ≤0.5 0.11

Carbon Black Content % CJ/T114-4.2.3.1 2.50.5 2.4

Polyurethane insulation layer

Density (kg/m) CJ/T114-4.3.2 ≥60 71.1

Average pore size (mm) CJ/T114-4.3.1 ≤0.5 qualified

Percentage of close area(%) CJ/T114-4.3.1 ≥88 94

Compressive strength(MPa) CJ/T114-4.3.3 ≥0.3 0.58

Water absorption(%) CJ/T114-4.3.4 Immersion in boiling water 90 minutes, bubble water absorption should be not more than 10% ≤5.53

Working steel pipe

Seamless steel pipe(≤DN150) GB8163 20# qualified

Spiral steel pipe(≥DN200) GB/T9711 or SY/T5037 Q235B qualified

PRODUCT FEATURES

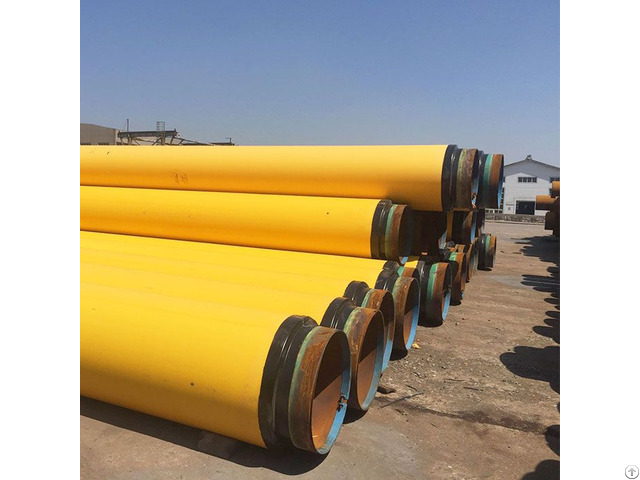

Product name Thermal insulation direct buried pipe

Length 5.8m-12m, or by customer's requirements

Nominal diameter DN25-1800

Laid way Buried

Application Fluid Pipe, Natural gas, Gas, Oil, Hydraulic, chemical, drill, etc.

Production Standard The national standard GB/T29047-2012, CJ/T114-2000, CJ/T155-2001

TECHNICAL INDICATORS

Nominal diameter OD hickness(mm) Outer protection tube diameter all thickness(mm) Insulation thickness(mm)

25 32x3 90x2.3 29

32 43x3 110x2.5 33

40 48x3 110x2.5 31

50 57x3 125x2.5 34

65 76x3.5 140x3 33

80 89x4 160x3.0 33

100 108x4 200x3.2 36

125 133x4.5 225x3.5 46

150 159x4.5 250x3.9 45.5

200 219x6 315x4.9 48

250 273x6 365x5.6 46

300 325x7 420x7 47.5

350 377x7 500x7.8 61.5

400 426x7 550x8.8 62

450 478x7 600x9.8 61

500 529x7 655x9.8 63

600 630x8 760x11 65

700 720x8 850x12 65

800 820x9 960x13 70

900 920x10 1054x14 67

1000 1020x12 1155x14 77

1200 1220x12 1380x15 80

1400 1420x14 1680x16 114
